EMA3 test point UNF

€9.10
Tax included Delivery in 1 to 5 working days.

(7.4 € No tax)

Oleotec EMA3 test point with UNF thread, in 7/16", 1/2", 9/16" and 3/4".

Test point accessory: 1/2"
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5931.312U

€7.40 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

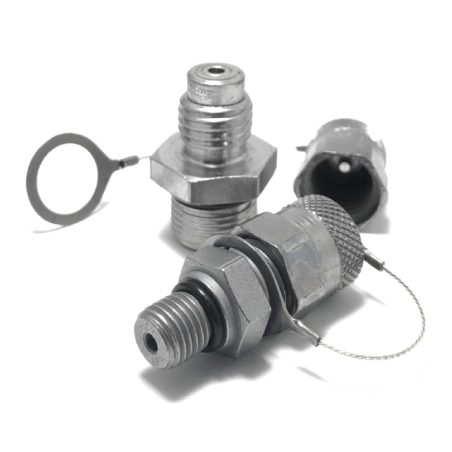

Oleotec test point with UNF thread, to screw into UNF ports (O-ring sealed) on manifolds, pumps and valves. At the top it has the EMA3 test connection (M16x2), where a test hose or pressure gauge connects to check pressure, bleed air or take an oil sample.

Threads available: 7/16", 1/2", 9/16" and 3/4" UNF. Steel body and cap with zinc-nickel finish, to ISO 15171-2. The maximum pressure depends on the thread: see the attached catalogue.

Before ordering, check the port thread with a thread gauge: 7/16" and 1/2" UNF are easy to mix up.

Source: Oleotec MCS technical catalogue, revision 02/20.

1.5931.312U

Specific References

ean13
2200111633502

You might also like

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (4)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
7/16"
1.5931.3716
In stock
€9.23
1/2"
1.5931.312U
In stock
€9.10
9/16"
1.5931.3916
In stock
€10.18
3/4"
1.5931.334
In stock
€12.41
