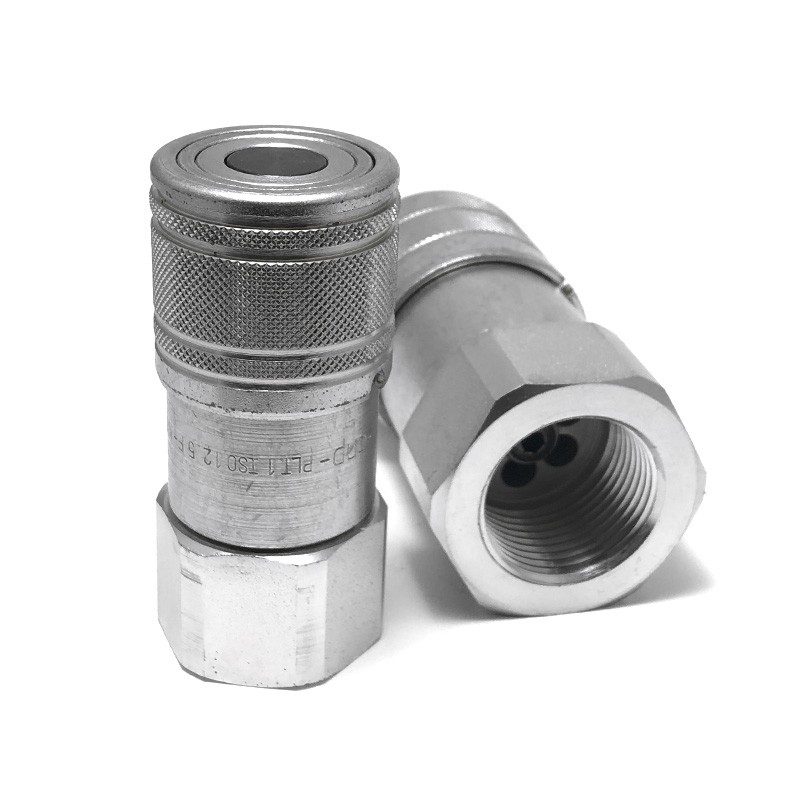

DNP PLT1 flat face female quick coupling
€93.50
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(76.02 € Excluding VAT. VAT at the legal rate applies.)
DNP PLT1 flat face female quick coupling to ISO 16028, with BSP female thread from 1/4" to 1.1/2".
DNP PLT1 series flat face female quick coupling to ISO 16028, with ball locking. With flat faces, almost no oil escapes when disconnecting and no air or dirt gets in when connecting; it is the usual coupling on construction machines and on attachments that are changed often.
- Steel with zinc-iron plating, NBR seals
- Working pressure: 300 bar in 1/4", 250 bar from 3/8" to 1.1/4" and 200 bar in 1.1/2"
- Working temperature from -25 °C to +100 °C
- Cannot be connected with residual pressure
The size in the list is the BSP female thread. Note the body size: the 3/8" (PLT1.1310.002) and 1/2" (PLT1.1313.002) ones have the DN13 body; the "1/2" (3/4")" option (PLT1.2013.002) is the DN20 body with 1/2" thread and connects to the 3/4" male. It also connects to ISO 16028 males from other makes, such as Parker FE, Faster 2FFI, Stucchi A and FIRG or Snap-Tite 74.
Source: DNP hydraulic quick release couplings technical catalogue, 2023.
1.4504.1
Specific References
- Internal barcode
- 2200001147706
You might also like
Customers who bought this product also bought:
1 other product in the same category:
Viewed products
Are you an OEM? Reseller? Workshop?
All options for this item (8)
Description
Part number
Availability
Price
1/4" - PLT1.0606.002
1.4504.14
In stock
€27.99
3/8" - PLT1.1310.002
1.4504.38
In stock
€26.72
1/2" (3/4") -PLT1.2013.002
1.4504.1234
In stock
€41.42
1/2" - PLT1.1313.002
1.4504.12
In stock
€28.42
3/4" - PLT1.2019.002
1.4504.34
In stock
€42.25
1" - PLT1.2525.002
1.4504.1
In stock
€93.50
1.1/4" - PLT1.3031.002
1.4504.114
Last units
€140.25
1.1/2" - PLT1.3939.002
1.4504.112
On request
