DNP PLT1 flat face male quick coupling
€39.95
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(32.48 € Excluding VAT. VAT at the legal rate applies.)

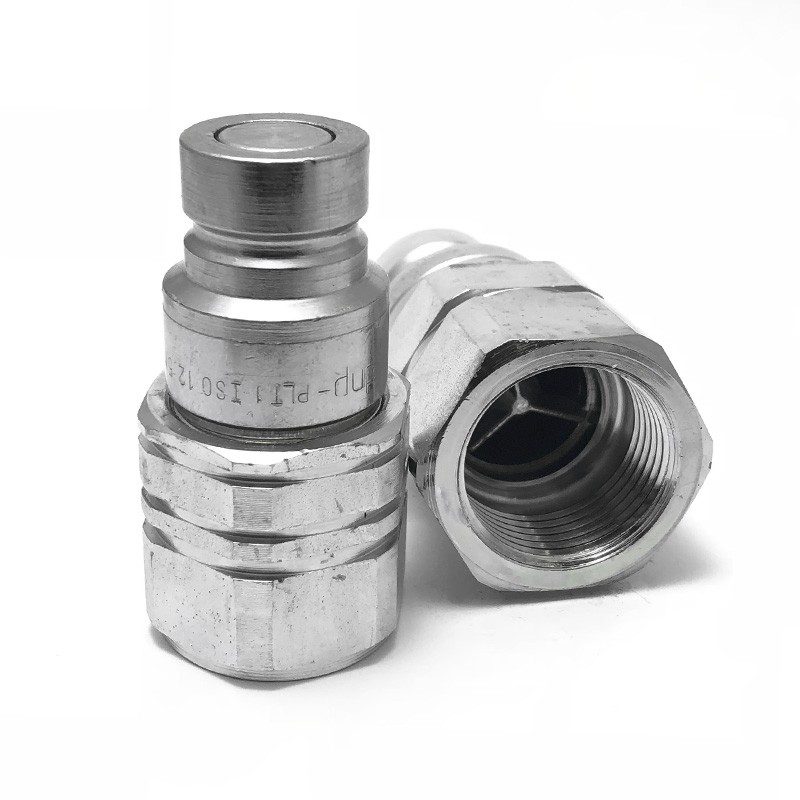

DNP PLT1 flat face male quick coupling to ISO 16028, with BSP female thread from 1/4" to 1.1/2".
DNP PLT1 series flat face male quick coupling to ISO 16028. It connects to the PLT1 female with the same body without losing oil or letting air in, and the flat face can be wiped clean before connecting.
- Steel with zinc-iron plating, NBR seals
- Coupling working pressure: 300 bar in 1/4", 250 bar from 3/8" to 1.1/4" and 200 bar in 1.1/2"
- Working temperature from -25 °C to +100 °C
- Cannot be connected with residual pressure
The size in the list is the BSP female thread of the male. The 3/8" one (PLT1.1310.003) has the DN13 body, the same as the 1/2", and the "1/2" (3/4")" one (PLT1.2013.003) has the DN20 body, the same as the 3/4": choose by the body of the machine female and by the hose thread. It also connects to ISO 16028 females from other makes, such as Parker FE, Faster 2FFI, Stucchi A and FIRG or Snap-Tite 74.
Source: DNP hydraulic quick release couplings technical catalogue, 2023.
1.4505.1
Specific References
- Internal barcode
- 2200001148208
You might also like
Customers who bought this product also bought:
1 other product in the same category:
Viewed products
Are you an OEM? Reseller? Workshop?
All options for this item (8)
Description
Part number
Availability
Price
1/4" - PLT1.0606.003
1.4505.14
In stock
€11.80
3/8" - PLT1.1310.003
1.4505.38
In stock
€12.00
1/2" (3/4") -PLT1.2013.003
1.4505.1234
Last units
€23.98
1/2" - PLT1.1313.003
1.4505.12
In stock
€12.00
3/4" - PLT1.2019.003
1.4505.34
In stock
€23.98
1" - PLT1.2525.003
1.4505.1
In stock
€39.95
1.1/4" - PLT1.3031.003
1.4505.114
Last units
€72.33
1.1/2" - PLT1.3939.003
1.4505.112
On request
