KTR BOWEX M steel hub for machining

Name: KTR BOWEX M steel hub for machining
Availability: InStock

€27.78

Tax included Delivery in 1 to 5 working days.

(22.58 € No tax)

Toothed steel hub for KTR BOWEX M couplings, sizes 19 to 65.

BoWeX M steel: M-19

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2024.19

€22.58 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

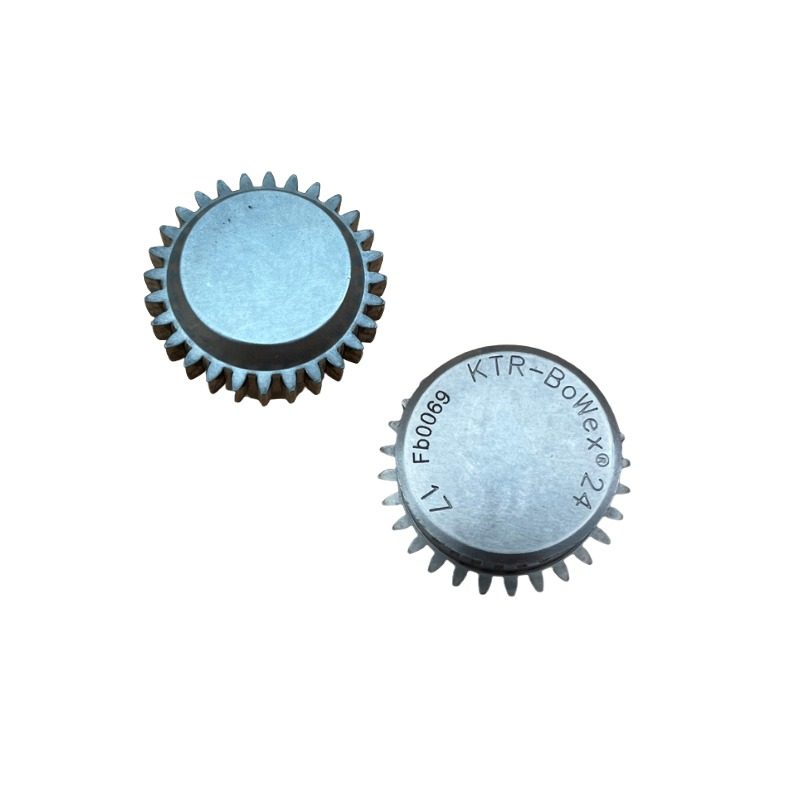

Steel hub with crowned external teeth for KTR BOWEX M couplings, for the bore to be machined to the shaft size (the M-65 comes with a 21 mm pilot bore). It is fitted with the BOWEX polyamide sleeve of the same size and a second hub for the other shaft.

Maximum bore, according to KTR: 20 mm on the M-19, 24 mm on the M-24, 28 mm on the M-28, 32 mm on the M-32, 38 mm on the M-38, 42 mm on the M-42, 48 mm on the M-48 and 65 mm on the M-65. KTR specifies an ISO H7 bore and a DIN 6885-1 (JS9) keyway.

Choose the size by the shaft diameter and the torque to be transmitted.

Source: KTR BoWex technical catalogue, 2011.

Reference 1.2024.19
