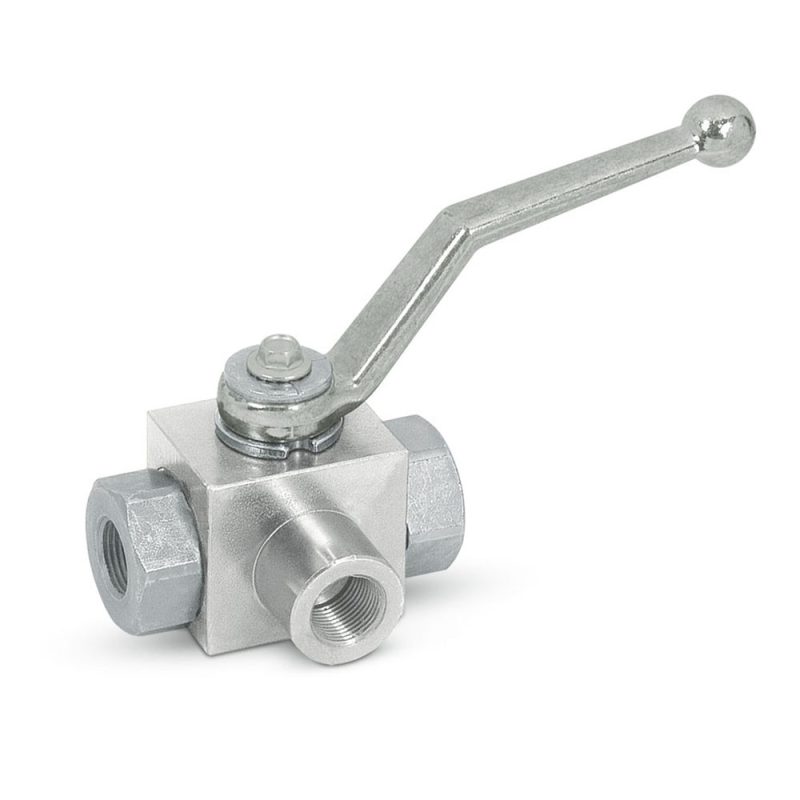

Marchesini RS 3 3-way ball valve

Name: Marchesini RS 3 3-way ball valve
Brand: Oleodinamica Marchesini
Availability: InStock

* Preço sob consulta *

Price including VAT at the legal rate

Marchesini RS 3 3-way ball valve, to send the flow from one inlet to one of two outlets. From G1/4 to G1.1/2, up to 500 bar in the smaller sizes.

Ball valves: 1/4" - V0832

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA12.V0832

Request a commercial proposal

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

The Oleodinamica Marchesini RS 3 is a 3-way ball valve with an L-port layout. Inlet P connects to outlet A with the lever at 90° and to outlet B with the lever in line with the body. It is used to feed one of two branches of the circuit by hand from the same line.

Body in zinc-plated steel; internal parts in ground and chrome-plated steel
Sealing by the ball, with NBR and POM seals
Female BSP threads, from G1/4 to G1.1/2
Pressure: 500 bar up to G1/2, 400 bar for G3/4 and 350 bar from G1 to G1.1/2
Maximum flow: 25 l/min for G1/4, 35 l/min for G3/8, 60 l/min for G1/2, 100 l/min for G3/4 and 180 l/min from G1 to G1.1/2

Codes ending in /FF have fixing holes in the body. Choose the thread and whether you need the holes; the PDF datasheet is in the attachments.

Source: Oleodinamica Marchesini technical catalogue, section 11 High pressure ball valves, 2008.
