Marchesini DF3 3-way open centre diverter

Name: Marchesini DF3 3-way open centre diverter
Brand: Oleodinamica Marchesini
Availability: InStock

€58.24

Tax included Delivery in 1 to 5 working days.

(47.35 € No tax)

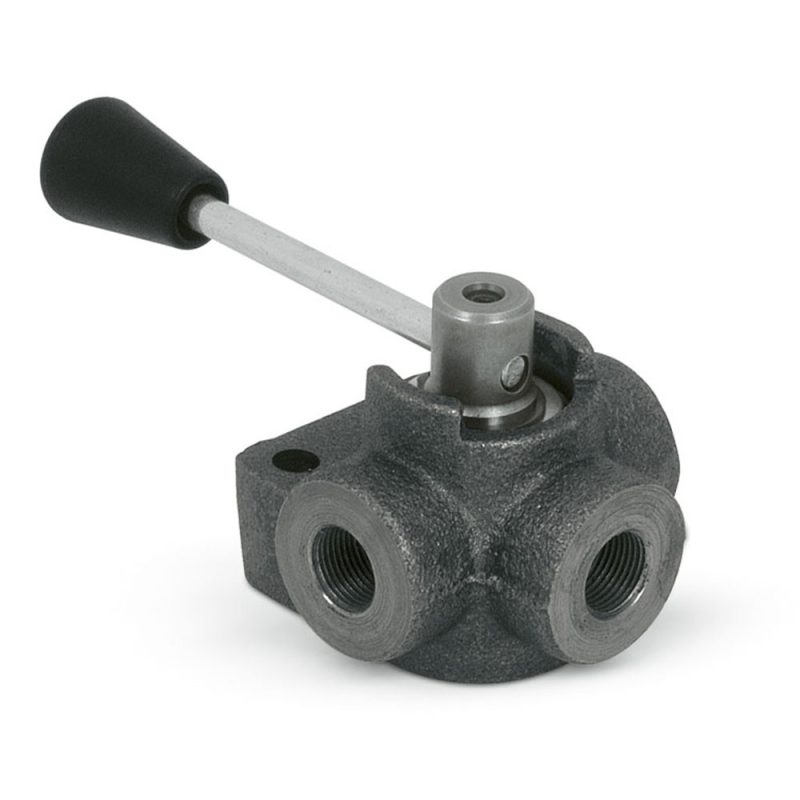

Marchesini DF3 3-way open centre ball diverter valve, 3/8" to 1".

Ball valves: 3/8" - V0880/CA

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA12.V0880

€47.35 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Manual lever-operated 3-way diverter, to send the oil from one inlet (P) to one of two outlets (A or B). With the lever in position 1 it feeds A; in position 2 it feeds B. In the centre position P, A and B are all connected (open centre). It is a simple way to use a single directional valve for two circuits.

V0880/CA: G 3/8", 35 l/min
V0890/CA: G 1/2", 60 l/min
V0900/CA: G 3/4", 100 l/min
V0910/CA: G 1", 180 l/min
Maximum pressure: 250 bar
Cast iron body, hardened and ground steel internals, NBR seals

For pressures up to 400 bar Marchesini offers the high pressure version (/AP). The catalogue is in the attachments.

Source: Oleodinamica Marchesini technical catalogue, section 12 Diverter valves, 2008.
