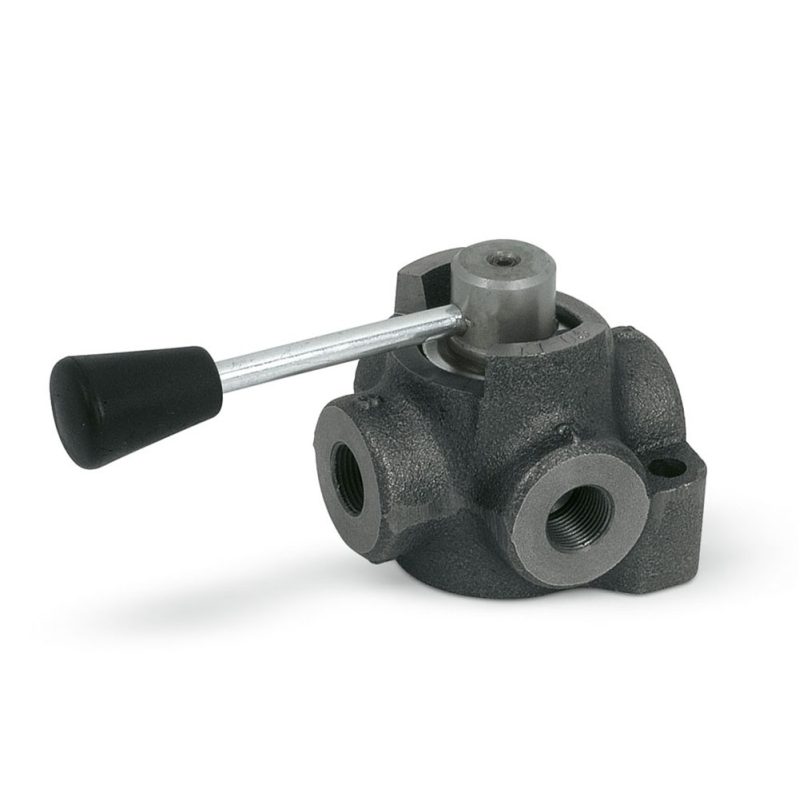

Marchesini IF4 4-way closed centre reversing valve

Name: Marchesini IF4 4-way closed centre reversing valve
Brand: Oleodinamica Marchesini
Availability: InStock

€79.21

Tax included Delivery in 1 to 5 working days.

(64.4 € No tax)

Marchesini IF4 4-way closed centre ball valve, 3/8" to 3/4", to reverse the oil flow to an actuator.

Ball valves: 3/8" - V0970/CC

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA12.V0970

€64.40 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Manual lever-operated 4-way reversing valve, with P (pressure) and T (tank) inlets and A and B outlets. With the lever in position 1, P feeds A and B drains to tank; in position 2, P feeds B and A drains to tank. In the centre position all ports are closed (closed centre), which holds the cylinder or motor still. It is used to operate a double-acting cylinder or to reverse the rotation of a hydraulic motor.

V0970/CC: G 3/8", 35 l/min
V0980/CC: G 1/2", 60 l/min
V0990/CC: G 3/4", 100 l/min
Maximum pressure: 250 bar
Cast iron body, hardened and ground steel internals, NBR seals

The Marchesini catalogue is in the attachments.

Source: Oleodinamica Marchesini technical catalogue, section 12 Diverter valves, 2008.
