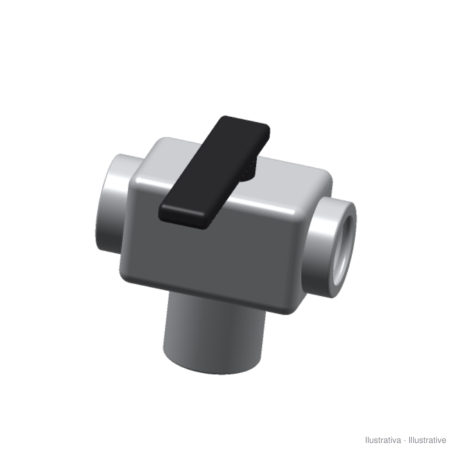

Marchesini 3-way diverter valve, high pressure (500 bar)
search
  • Marchesini 3-way diverter valve, high pressure (500 bar)

Marchesini 3-way diverter valve, high pressure (500 bar)

€50.41
Tax included Delivery in 1 to 5 working days.

(40.99 € No tax)

Marchesini 3-way ball diverter valve, high pressure version (/AP) up to 500 bar, from G3/8 to G1. It sends the oil to one of two circuits.

3-way diverter AP: 3/8" - V0881/AP
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA12.V0881AP

€40.99 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Oleodinamica Marchesini 3-way ball diverter valve, high pressure /AP version. The lever selects the outlet: oil entering at P goes to A or to B. With the lever in the centre position, P, A and B are all connected (open centre). It is used to switch by hand between two circuits fed by the same pump.

  • Pressure: up to 500 bar (the standard version of this family works up to 250 bar)
  • V0881/AP: G3/8, 60 l/min
  • V0891/AP: G1/2, 90 l/min
  • V0901/AP: G3/4, 120 l/min
  • V0911/AP: G1, 180 l/min
  • Steel body, hardened and ground steel internal parts, NBR seals with anti-extrusion rings

Before ordering, check the port thread and the maximum pressure of the circuit.

Source: Oleodinamica Marchesini DF AP technical datasheet (16.2), 2018; Oleodinamica Marchesini technical catalogue, section 12 Diverter valves, 2008.

1.MA12.V0881AP

Data sheet

Port thread
G 1
G 1/2
G 3/4
G 3/8

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (4)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
3/8" - V0881/AP
1.MA12.V0881AP
Last units
€50.41
1/2" - V0891/AP
1.MA12.V0891AP
Last units
€80.90
3/4" - V0901/AP
1.MA12.V0901AP
In stock
€129.38
1" - V0911/AP
1.MA12.V0911AP
Last units
€151.85
