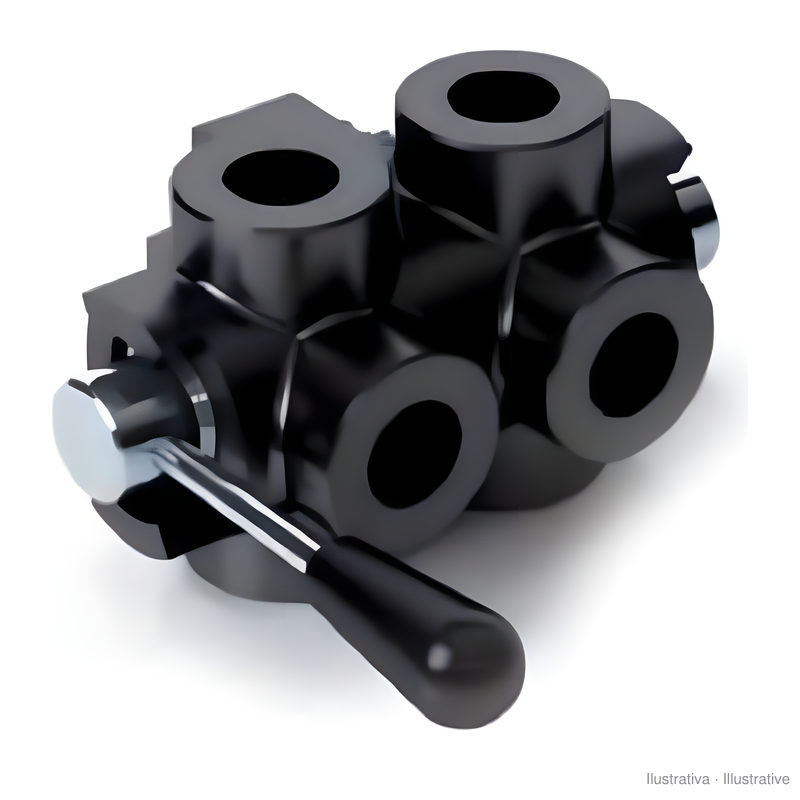

Marchesini DF6 3/8" 6-way diverter (V0920)

Name: Marchesini DF6 3/8" 6-way diverter (V0920)
Brand: Oleodinamica Marchesini
SKU: 1.MA12.V0920
Price: 134.91 EUR
Availability: InStock

€134.91

Tax included

(109.68 € No tax)

Marchesini 3/8" 6-way diverter, with one lever operating two 3-way diverters. Up to 35 l/min and 250 bar.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA12.V0920

€109.68 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

The DF6 is two 3-way diverters in one body, operated together by a single lever. Each section sends the oil from one inlet to one of two outlets, which allows two actuators to be operated with a single directional valve.

P and P' connect to the two supplies, A and B to the first actuator and A' and B' to the second. With the lever in position 1, P feeds A and P' feeds A'; in position 2, P feeds B and P' feeds B'. In the centre position the ports of each section are connected to each other (open centre).

Maximum flow: 35 l/min; maximum pressure: 250 bar
Connections: G 3/8"
Cast iron body, hardened and ground steel internals, NBR seals
Weight: about 1.7 kg

Source: Oleodinamica Marchesini technical catalogue, section 12 Diverter valves, 2008.
