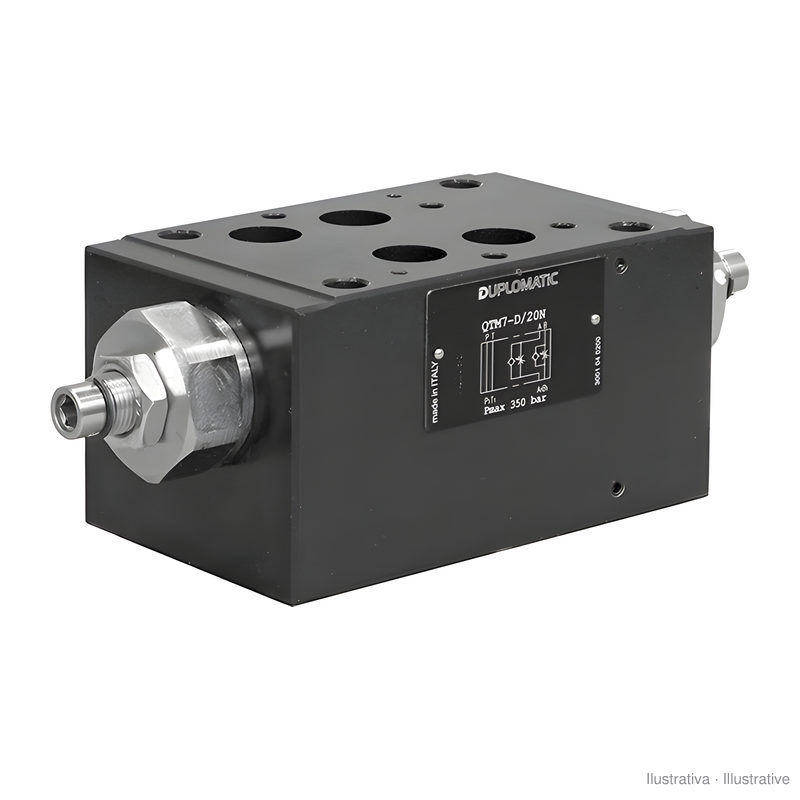

Duplomatic QTM7-SA/20N/S meter-out modular flow restrictor, NG16 (CETOP 7)

* Price on request *

Tax included

NG16 (CETOP 7) modular flow restrictor that controls the flow leaving the actuator on line A, with free return.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.QTM7SAS

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The QTM7 is a flow restrictor with built-in check valve, in ISO 4401-07 (CETOP 7) modular form. It fits in the stack, under the solenoid valve, held by the tie rods, without pipework.

The SA version controls the oil leaving the actuator on line A (meter-out); in the opposite direction the oil flows freely through the check valve. It is used to control the speed of large cylinders, especially with loads that tend to pull the cylinder.

Data from the Duplomatic series 10 datasheet; this item is series 20, so please check the values with us before ordering.

Maximum pressure: 350 bar
Maximum flow: 250 l/min
Check valve cracking pressure: 0.7 bar
N: NBR seals, for mineral oil
S: countersunk hexagon screw adjustment with locknut; turning anticlockwise increases the flow

For control on both lines there is the QTM7-D version.

Source: Duplomatic QTM7 technical catalogue, version 64 410/112 ED.
