NG6 (CETOP 3) sandwich for VMDC35 relief valves

* Price on request *

Price including VAT at the legal rate

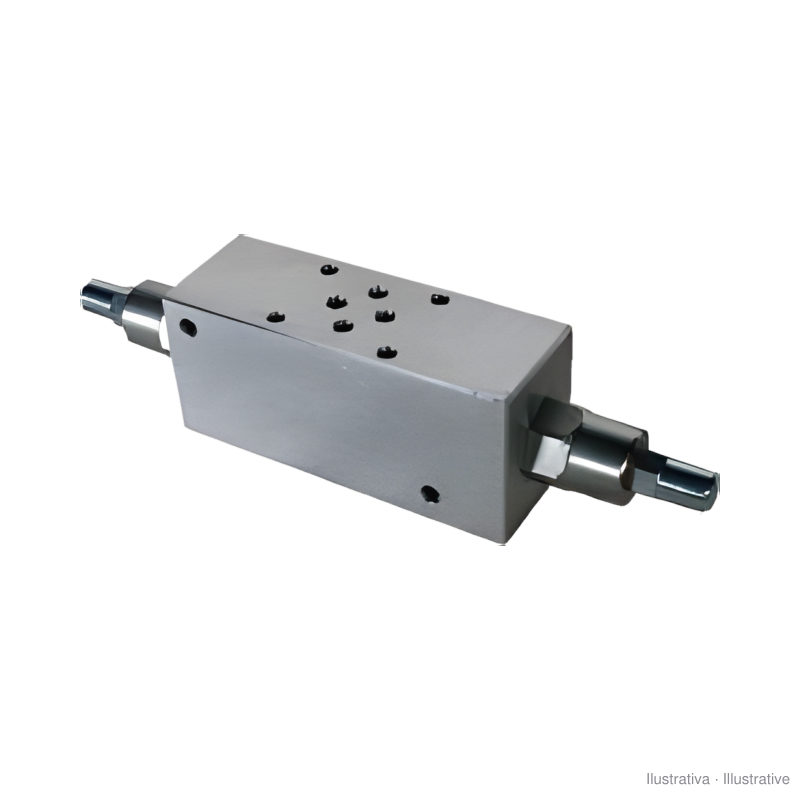

Hydronit NG6 (CETOP 3) sandwich block to fit VMDC35 pressure relief valves.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0671.E60423000

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Hydronit NG6 (CETOP 3) sandwich block, E6042300* series, to fit VMDC35 pressure relief valves on lines A and B, between the modular block and the CETOP 3 solenoid valve. It limits the pressure on one or both sides of the cylinder, each with its own setting.

Maximum pressure: 350 bar
Maximum flow: 35 l/min
Mounting: 4 M5 tie rods
Recommended filtration: 25 to 50 µm; oil from -30 to +80 °C

The CETOP 3 solenoid valve is not included. Please check with us whether this code comes with the VMDC35 relief valves fitted and, if so, on which lines and with which pressure range.

Source: Hydronit AC & DC Hydraulic Power Packs Compact technical catalogue, version PPC2010-05/EN.
