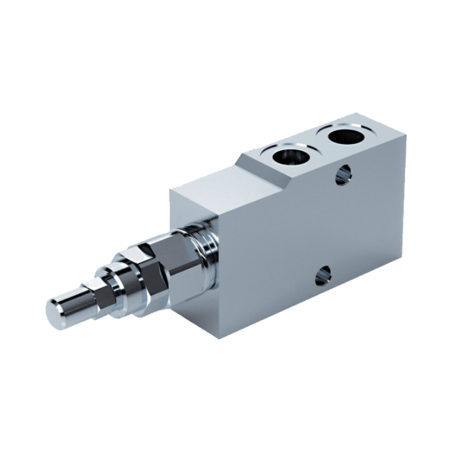

Marchesini VBCD SE A CC overcentre valve for closed centre

Name: Marchesini VBCD SE A CC overcentre valve for closed centre
Brand: Oleodinamica Marchesini
Availability: InStock

€111.21

Tax included Delivery in 1 to 5 working days.

(90.41 € No tax)

Marchesini VBCD SE A CC single-acting overcentre valve, for closed centre.

Overcentre valves: 3/8" - V0391

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0391

€90.41 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Description
Product Details

The VBCD SE A CC is the type A single overcentre valve for closed-centre directional valves. It holds the cylinder in one direction, lets the load come down in a controlled way and limits the pressure in case of shocks. It is not sensitive to back pressure, so it works where a normal overcentre valve does not control the load properly.

3/8" (V0391): G 3/8" threads, up to 40 l/min
1/2" (V0393): G 1/2" threads, up to 60 l/min

Maximum pressure 350 bar and pilot ratio 1:4.5. C1 goes to the free-flow side of the actuator and C2 to the held side; V1 and V2 go to the directional valve. Set it at least 1.3 times above the pressure caused by the load.

Source: Oleodinamica Marchesini general catalogue 2018; Oleodinamica Marchesini technical catalogue, section Overcentre valves.
