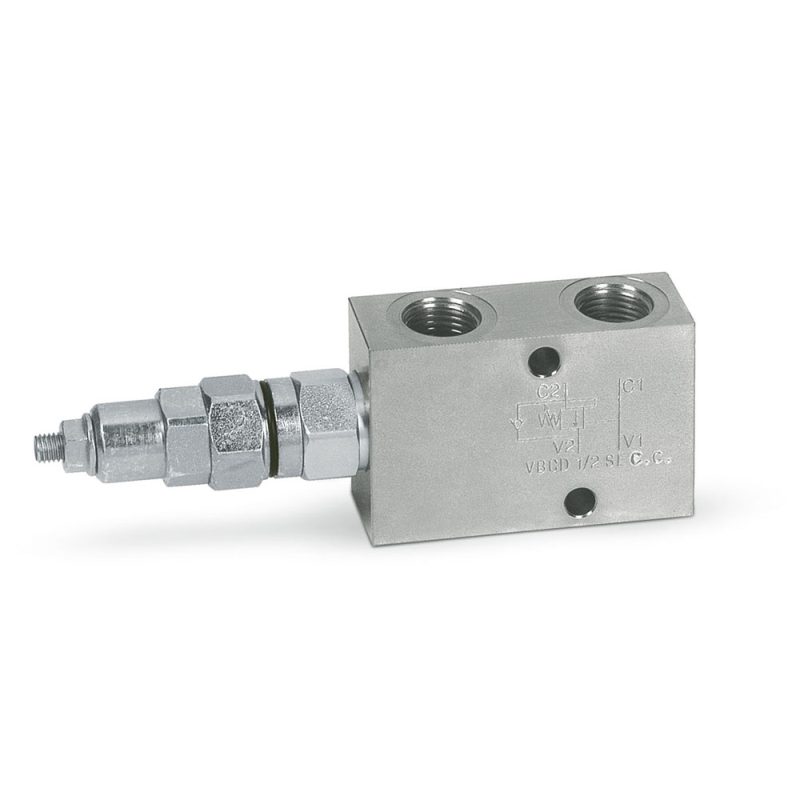

Marchesini VBCD SE CC 3/4" overcentre valve for closed centre

Name: Marchesini VBCD SE CC 3/4" overcentre valve for closed centre
Brand: Oleodinamica Marchesini
Availability: InStock

€200.52

Tax included Delivery in 1 to 5 working days.

(163.03 € No tax)

Marchesini VBCD SE CC single-acting overcentre valve, 3/4", for closed centre.

Overcentre valves: 3/4" - V0409

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0409

€163.03 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The 3/4" VBCD SE CC is Marchesini's single overcentre valve for closed-centre directional valves. It holds the cylinder in one direction, controls the lowering of the load without cavitation and limits the pressure in case of shocks or overloads. As it is not sensitive to back pressure, it works in circuits where a normal overcentre valve cannot control the load.

V0409: 3/4", up to 105 l/min, pilot ratio 1:5.5
V0409/RP18: the same valve with a 1:8 pilot ratio

Maximum pressure 350 bar; factory setting 320 bar, which must be at least 1.3 times the load pressure. In-line mounting: V1 and V2 to the directional valve, C1 to the free-flow side and C2 to the held side. For 3/8" and 1/2", see VBCD SE CC V0407 and V0408.

Source: Oleodinamica Marchesini technical catalogue, section Overcentre valves.
