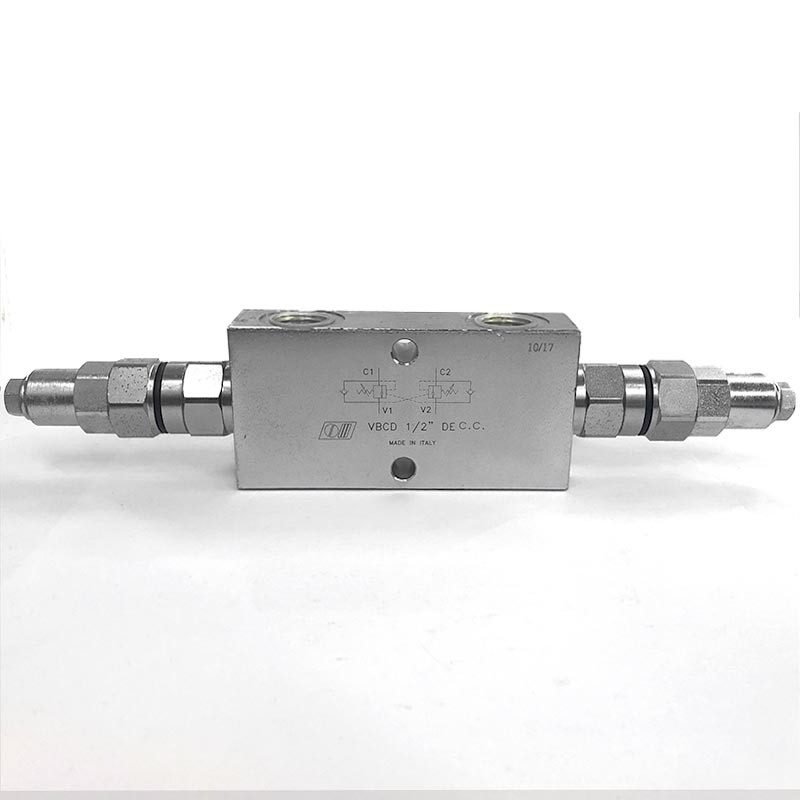

Marchesini VBCD DE CC double overcentre valve

Name: Marchesini VBCD DE CC double overcentre valve
Brand: Oleodinamica Marchesini
Availability: InStock

€217.69

Tax included Delivery in 1 to 5 working days.

(176.99 € No tax)

Marchesini double overcentre valve for closed-centre directional valves, controlling load lowering in both directions.

Overcentre valves: 3/8" - V0441

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0441

€176.99 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBCD DE CC controls and locks the movement of a cylinder or motor in both directions. It lowers the load in a controlled way, without letting it run away under its own weight or causing cavitation, and limits the pressure when there are shocks, overloads or sudden movements.

It was designed for closed-centre directional valves and is not sensitive to back pressure, so it works where normal overcentre valves fail to control the load. It comes set at 320 bar. Marchesini asks for a setting of at least 1.3 times the pressure caused by the load, so the valve closes even with the maximum load.

3/8" (V0441): 35 l/min, pilot ratio 1:3.1
1/2" (V0442): 50 l/min, ratio 1:3.1
3/4" (V0443): 105 l/min, ratio 1:5.5
Maximum pressure: 350 bar

The /RP18 versions have a 1:8 pilot ratio. V1 and V2 connect to the supply and C1 and C2 to the actuator.

Source: Oleodinamica Marchesini technical catalogue, section Overcentre valves.
