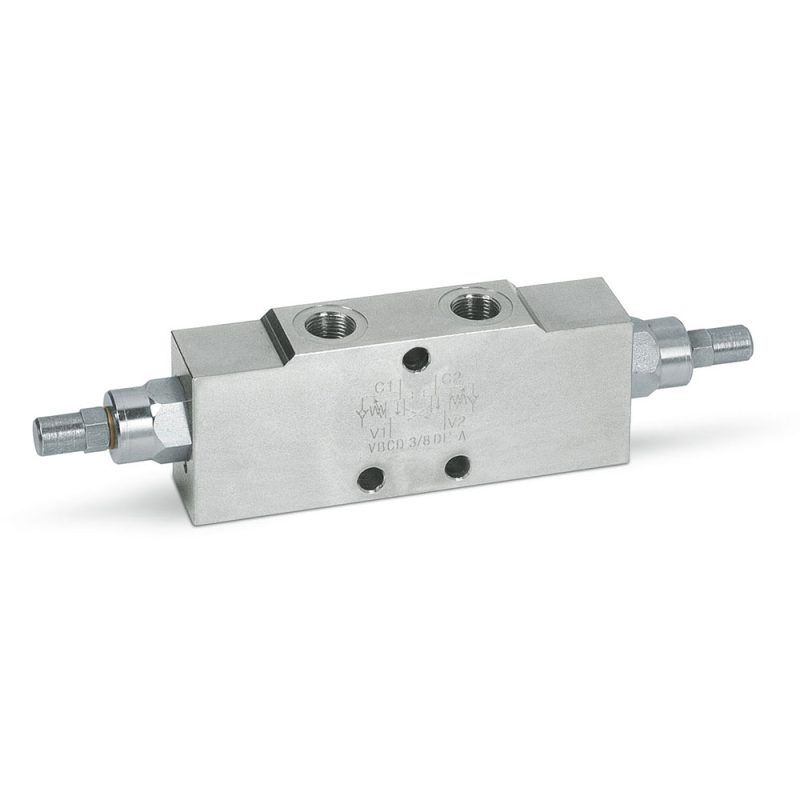

Marchesini VBCD DE A double overcentre valve

Name: Marchesini VBCD DE A double overcentre valve
Brand: Oleodinamica Marchesini
Availability: InStock

€147.25

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(119.72 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VBCD DE A double overcentre valve, 3/8" to 1", also with a port to release a motor brake (/SF).

Overcentre valves: 3/8" - V0422

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0422

€119.72 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBCD DE A is the type A double overcentre valve: it controls the cylinder or motor in both directions, lowers the load without cavitation and limits the pressure in case of shocks or sudden movements. It differs from the VBCD DE in port layout and pilot ratio.

3/8" (V0422): 40 l/min, ratio 1:4.5
1/2" (V0432): 60 l/min, ratio 1:4.5
3/4" (V0435): 100 l/min, ratio 1:5.5
1" (V0436): 150 l/min, ratio 1:5.5
V0422/SF and V0432/SF: with a G 1/4" SF port to operate the motor brake release

Maximum pressure 350 bar; factory setting 320 bar. Connect V1 and V2 to the directional valve and C1 and C2 to the actuator; on the SF version, the SF port goes to the brake.

Source: Oleodinamica Marchesini general catalogue 2018.
