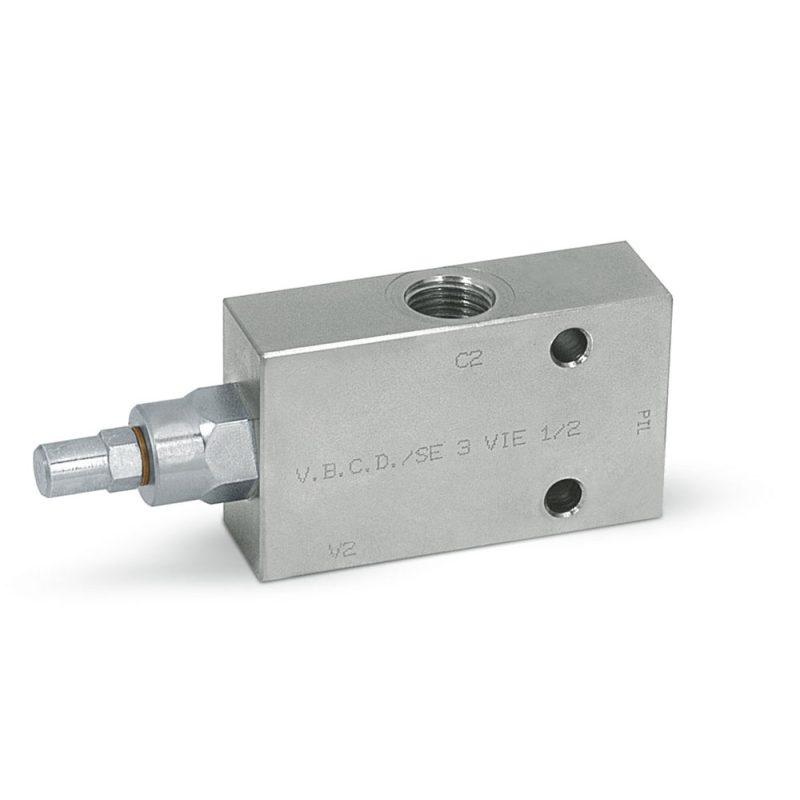

Marchesini VBCD SE 3 vie 3-way overcentre valve

Name: Marchesini VBCD SE 3 vie 3-way overcentre valve
Brand: Oleodinamica Marchesini
Availability: InStock

€69.08

Tax included Delivery in 1 to 5 working days.

(56.16 € No tax)

Marchesini VBCD SE 3-way single overcentre valve, with external pilot, 3/8" and 1/2".

Overcentre valves: 3/8" - V0394

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0394

€56.16 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBCD SE 3 vie is a single overcentre valve with an external pilot line: instead of taking pressure from the other actuator line inside the body, it receives it through its own G 1/4" port. It controls the lowering of the load in one direction, without cavitation, and limits the pressure in case of shocks or overloads.

3/8" (V0394): up to 40 l/min
1/2" (V0414): up to 60 l/min

Maximum pressure 350 bar, pilot ratio 1:4.5, factory setting 320 bar. Connect V2 to the supply, C2 to the actuator side to be controlled and the pilot port to the line that commands opening. The setting must be at least 1.3 times the load pressure.

Source: Oleodinamica Marchesini technical catalogue, section Overcentre valves.
