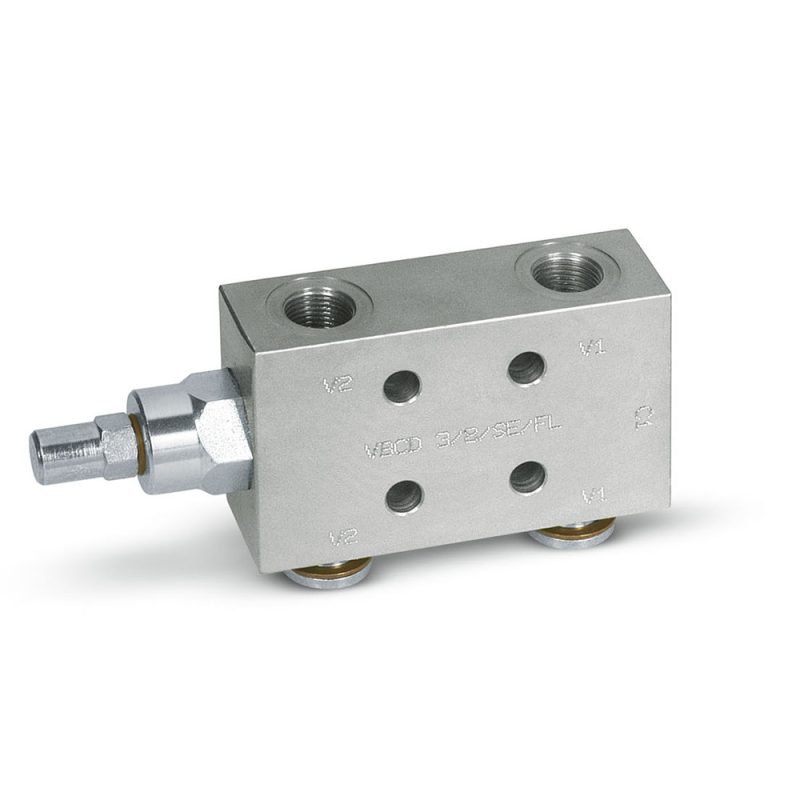

Marchesini VBCD SE FL flange-mounted overcentre valve

Name: Marchesini VBCD SE FL flange-mounted overcentre valve
Brand: Oleodinamica Marchesini
Availability: InStock

€102.04

Tax included Delivery in 1 to 5 working days.

(82.96 € No tax)

Marchesini VBCD SE FL single overcentre valve, for direct flange mounting on the cylinder, 3/8" and 1/2".

Overcentre valves: 3/8" - V0400

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0400

€82.96 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBCD SE FL is the single overcentre valve with port C2 on a flange: it bolts directly onto the side of the cylinder that must be held, with an OR 3043 O-ring in the seat, and avoids a pipe between valve and actuator. C1 goes to the free-flow side and V1 and V2 to the directional valve; ports V1 and V2 are reversible.

3/8" (V0400): V1 and V2 in G 3/8", up to 40 l/min
1/2" (V0402): V1 and V2 in G 1/2", up to 60 l/min

Maximum pressure 350 bar, pilot ratio 1:4.5, factory setting 320 bar. It controls lowering without cavitation and limits the pressure in case of shocks. For mounting away from the cylinder there is the B8000 subplate.

Source: Oleodinamica Marchesini technical catalogue, section Overcentre valves.
