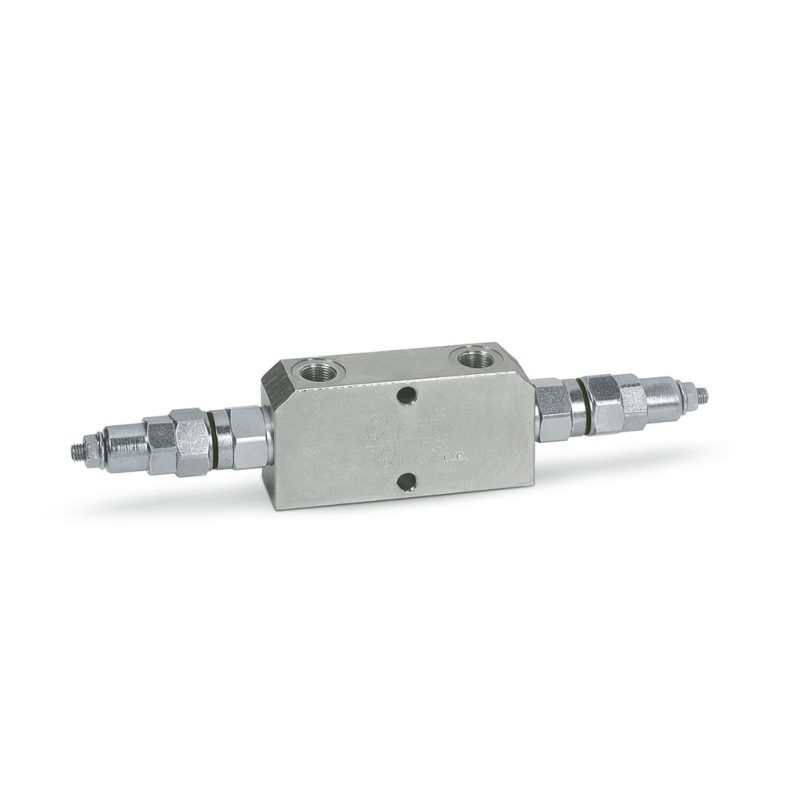

Marchesini VBCD DE double overcentre valve

Name: Marchesini VBCD DE double overcentre valve
Brand: Oleodinamica Marchesini
Availability: InStock

€166.86

Tax included Delivery in 1 to 5 working days.

(135.66 € No tax)

Marchesini VBCD DE double overcentre valve, 3/8" to 3/4".

Overcentre valves: 3/8" - V0420

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0420

€135.66 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBCD DE controls and holds a cylinder or motor in both directions. The load comes down in a controlled way, without running away under its own weight or causing cavitation, and the valve limits the pressure when there are shocks, overloads or sudden movements. This is the version for open-centre directional valves.

3/8" (V0420): 35 l/min, pilot ratio 1:3.1
1/2" (V0430): 50 l/min, ratio 1:3.1
3/4" (V0431): 105 l/min, ratio 1:5.5

Maximum pressure 350 bar; factory set at 320 bar. The setting must be at least 1.3 times the pressure caused by the load, so the valve closes even with the maximum load. In-line mounting: V1 and V2 to the directional valve, C1 and C2 to the actuator. A 1:8 ratio (/RP18) and sealed versions (/P, /PP) are available on request.

Source: Oleodinamica Marchesini technical catalogue, section Overcentre valves.
