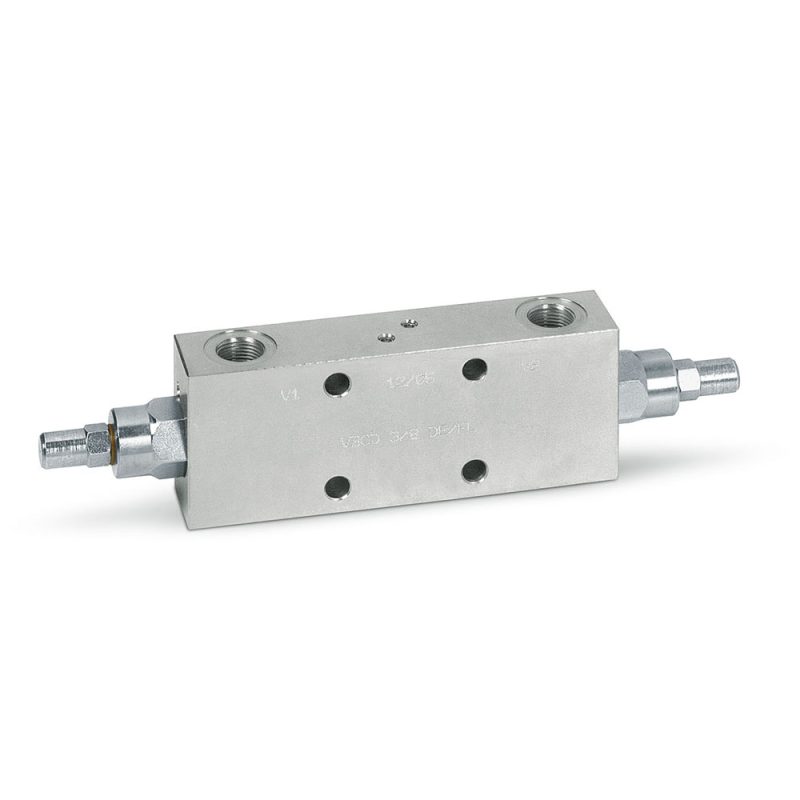

Marchesini VBCD DE FL flange-mounted double overcentre valve

Name: Marchesini VBCD DE FL flange-mounted double overcentre valve
Brand: Oleodinamica Marchesini
Availability: InStock

* Price on request *

Tax included

Marchesini VBCD DE FL double overcentre valve, for direct flange mounting on the cylinder, 3/8" and 1/2", also for closed centre.

Overcentre valves: 3/8" - V0424

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0424

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

On the VBCD DE FL, ports C1 and C2 are on a face with seats for OR 3043 O-rings, and the valve bolts directly onto the cylinder with no pipes. It controls the load in both directions: lowering without cavitation, and pressure limited in case of shocks or sudden movements.

3/8" (V0424): V1 and V2 in G 3/8", up to 40 l/min
1/2" (V0434): V1 and V2 in G 1/2", up to 60 l/min
1/2" CC (V0437): version for closed-centre directional valves, up to 60 l/min

Maximum pressure 350 bar, pilot ratio 1:4.5, factory setting 320 bar. For mounting away from the cylinder there is the B8500 subplate. Check the hole pattern on the cylinder face (ports 48 mm apart) before ordering.

Source: Oleodinamica Marchesini technical catalogue, section Overcentre valves; Oleodinamica Marchesini general catalogue 2018.
