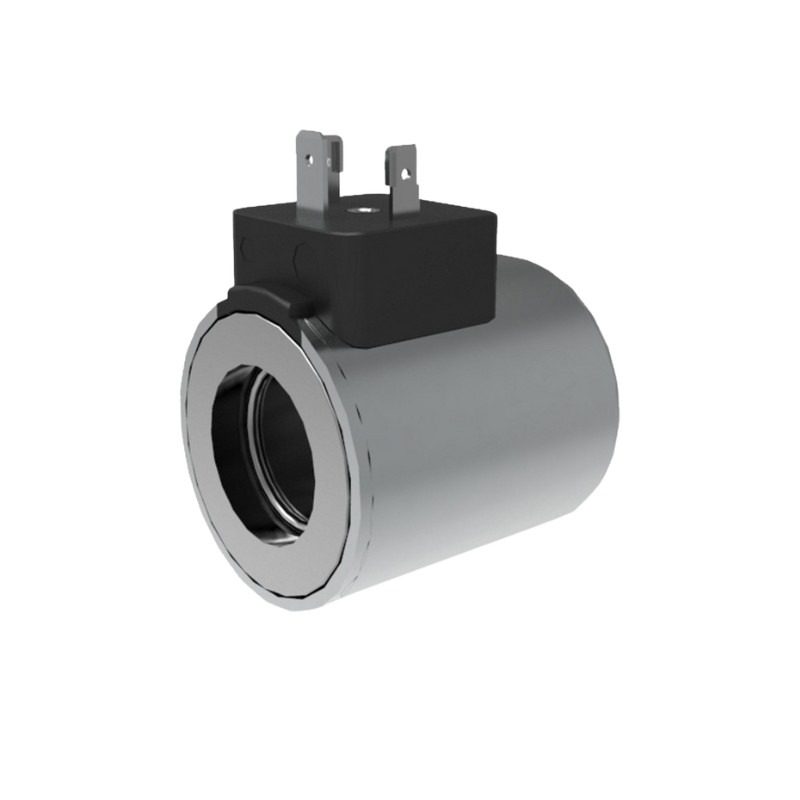

Argo-Hytos C22B-02400E1-25.3NA coil 24 V DC 22.8 W

Name: Argo-Hytos C22B-02400E1-25.3NA coil 24 V DC 22.8 W
Brand: Argo Hytos
SKU: AH.27222800
Price: 23.22 EUR
Availability: InStock

€23.22

Tax included

(18.88 € No tax)

Argo-Hytos C22B coil, 24 V DC and 22.8 W, continuous duty (100% ED), for 22 mm tube, with EN 175301-803-A connector.

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.27222800

€18.88 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Argo-Hytos replacement coil, size C22, for a 22 mm solenoid tube (22 × 52 mm coil). Argo-Hytos uses this size on the NG6 (CETOP 3) RPE3-06, RPER3-06 and RPEW4-06 solenoid valves, on the RPEL1-10 and on cartridge valves such as SD2E-B/H and SD3E-B2/H.

Code: C22B-02400E1-25.3NA
Voltage: 24 V DC; resistance 25.3 Ω at 20 °C
Power: 22.8 W, continuous duty (100% ED)
E1 connector: EN 175301-803-A (formerly DIN 43650)

There are 24 V C22B coils with other power ratings: check the full code on the coil you are replacing.

Source: Argo-Hytos Coils for Operating Solenoids of Valves data sheet, HA 8007, 08/2025.
