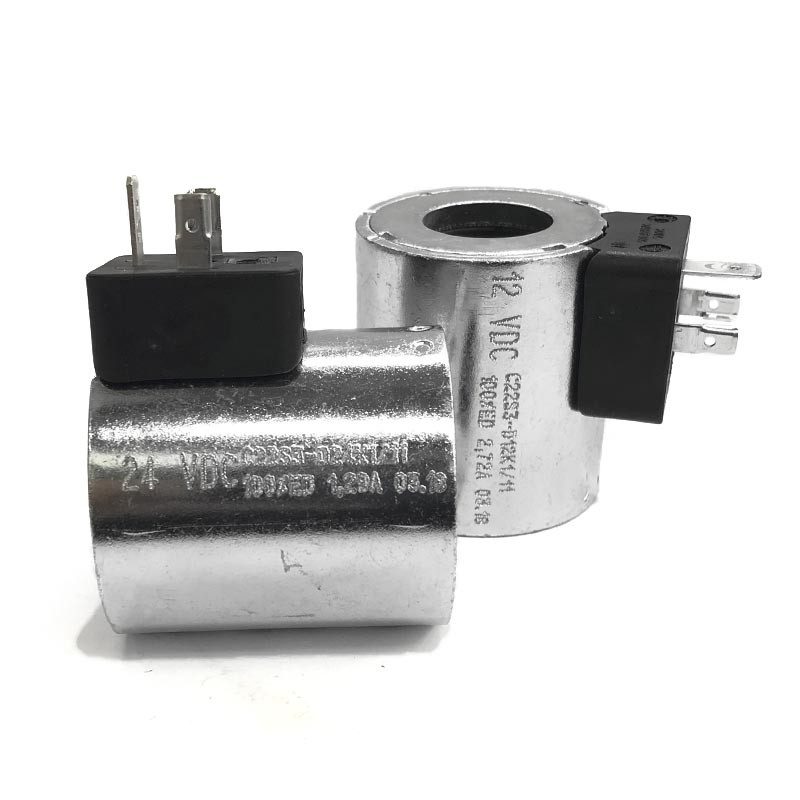

Duplomatic coil for DS3 solenoid valve

Name: Duplomatic coil for DS3 solenoid valve
Brand: Duplomatic
Availability: InStock

€37.51

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(30.5 € Excluding VAT. VAT at the legal rate applies.)

Replacement coil for Duplomatic DS3 (NG6) solenoid valves, DC from 12 to 220 V or AC from 24 to 220 V, with DIN 43650, AMP Junior or Deutsch connector.

Duplomatic NG6 (CETOP 3): 110V AC

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DS3COILA110K1

€30.50 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Coil for Duplomatic DS3 directional solenoid valves, NG6 (CETOP 3). It fits over the solenoid tube and is held by the locking ring; it can be changed without opening the hydraulic circuit.

Direct current (type C22S3, for 22 mm tube): 12, 24, 48, 110 and 220 V; power from 28.2 to 32.7 W depending on voltage
Alternating current (type C20.6S3): 24, 48, 110 and 220 V
Standard DIN 43650 connector (K1); at 12 and 24 V DC also with AMP Junior (K2) or Deutsch DT04 (K7)
The DC coil rotates 360° on the tube; the AC coil rotates 90°

A DC coil does not fit an AC tube and vice versa. Before ordering, check the voltage, current type and connector on the old coil.

Source: Duplomatic DS3 technical catalogue, version 41 150/116 ED.

Reference D.DS3COILA110K1

Data sheet

Coil bore: 20.8 mm
22 mm
Voltage: 12 V DC
24 V AC
24 V DC
48 V AC
48 V DC
110 V AC
110 V DC
220 V DC
230 V AC
Power: 28.2 W
29.5 W
31 W
32.7 W
44 VA
48 VA
51 VA
