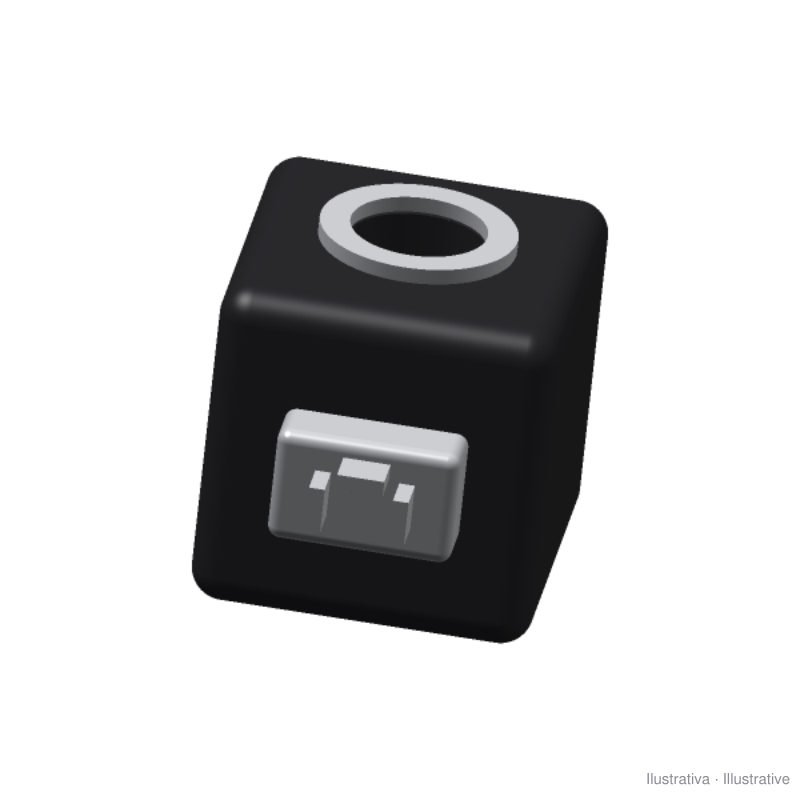

Danfoss 02-178028 24 V DC coil

* Price on request *

Tax included

Danfoss 02-178028 coil, 24 V DC and 26 W, for DIN 43650 (ISO 4400) connector, for Vickers solenoid cartridge valves, series 10 and 12.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 02-178028

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Encapsulated coil from the Vickers range, now Danfoss, part number 02-178028: 24 V DC, G connector (DIN 43650 / ISO 4400). It fits Vickers solenoid cartridge valves, series 10 and 12, rated 350 bar.

Nominal power: 26 W at 25 °C; current: 1.09 A
Continuous duty from 85% to 110% of nominal voltage
Up to 100 °C continuous at nominal voltage; class N magnet wire (200 °C), P.E.T. encapsulation

The DIN connector is ordered separately. Check the number on the coil you are replacing and the valve series.

Source: Vickers 5082 Screw-in Cartridge Valves, Solenoid Bi-Directional Valves technical catalogue, version 5082.00/EN/01198/A.
