Argo-Hytos SL2H/H2I11 normally open logic element (cartridge)
search
  • Argo-Hytos SL2H/H2I11 normally open logic element (cartridge)
  • Argo-Hytos SL2H/H2I11 normally open logic element (cartridge)

Argo-Hytos SL2H/H2I11 normally open logic element (cartridge)

€116.48
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(94.7 € Excluding VAT. VAT at the legal rate applies.)

Argo-Hytos SL2H/H2I11 spool-type logic valve, normally open, in BP3 (80 l/min) or CP3 (120 l/min) cartridge, up to 350 bar.

Model: Normally open 80 l/min 350 bar CAV10-3S (10 bar): SL2H-BP3/H2I11-100C-B
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.44519400

€94.70 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The SL2H/H2I11 is a normally open, spool-type logic valve in a cartridge. It works as a 2-way pressure compensator that keeps a constant pressure drop across a control valve, such as a proportional directional valve, and so a flow independent of the load. It can also be the main stage of a pilot operated pressure reducing valve.

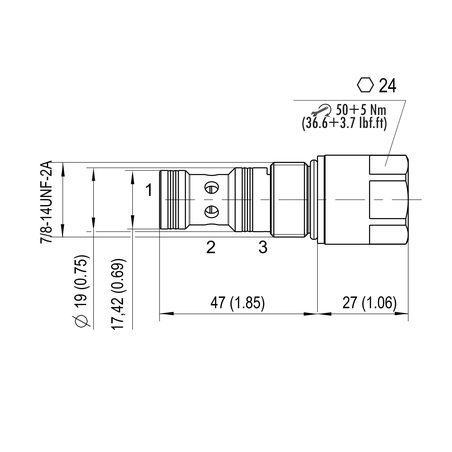

  • SL2H-BP3: 7/8"-14 UNF cartridge, cavity BP3 (C-10-3S), up to 80 l/min
  • SL2H-CP3: 1-1/16"-12 UN cartridge, cavity CP3 (12-3S), up to 120 l/min
  • Maximum pressure: 350 bar
  • C versions, fixed spring: 3, 6 or 10 bar
  • S versions, adjustable with a 5 mm Allen key: 1.4 to 14 bar (140) or 2 to 20 bar (200)
  • NBR seals; zinc-nickel coated

Check the cavity (10-3S or 12-3S) and the spring pressure.

Source: Argo-Hytos SL2H-BP3/H2I11 datasheet, HA 5044, 03/2023; Argo-Hytos SL2H-CP3/H2I11 datasheet, HA 5088, 04/2024.

AH.44519400

Data sheet

Cavity
CAV 10-3S
CAV 12-3S

Specific References

MPN
44519400

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (15)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
Normally open 80 l/min 350 bar CAV10-3S (2-20 bar): SL2H-BP3/H2I11-200S-B
AH.45535200
In stock
Normally open 80 l/min 350 bar CAV10-3S (3 bar): SL2H-BP3/H2I11-030-C-B
AH.SL2H-BP3 H2I11030C
On request
Normally open 80 l/min 350 bar CAV10-3S (6 bar): SL2H-BP3/H2I11-060-C-B
AH.SL2H-BP3 H2I11060C
On request
Normally open 80 l/min 350 bar CAV10-3S (10 bar): SL2H-BP3/H2I11-100C-B
AH.44519400
Last units
Normally open 80 l/min 350 bar CAV10-3S (spring 3 bar): SL2H-BP3/H2I11-030-C-B
AH.47002276
In stock
Normally open 80 l/min 350 bar CAV10-3S (spring 6 bar) SL2H-BP3/H2I11-060-C-B
AH.45827000
In stock
Normally open 80 l/min 350 bar CAV10-3S (adj. 1.4 to 14 bar): SL2H-BP3/H2I11-140-S-B
AH.47002279
In stock
Normally open 80 l/min 350 bar CAV10-3S (adj. 1.4 to 14 bar): SL2H-BP3/H2I11-140-S-B (SL2H-BP3 H2I11140S)
AH.SL2H-BP3 H2I11140S
On request
Normally open 120 l/min 350 bar CAV12-3S (3 bar): SL2H-CP3/H2I11-030C-B
AH.47011089
In stock
Normally open 120 l/min 350 bar CAV12-3S (3 bar): SL2H-CP3/H2I11-030C-B B
AH.SL2HCP3H2I11030CB
On request
Normally open 120 l/min 350 bar CAV12-3S (6 bar): SL2H-CP3/H2I11-060C-B
AH.45817000
In stock
Normally open 120 l/min 350 bar CAV12-3S (6 bar): SL2H-CP3/H2I11-060C-B B
AH.SL2HCP3H2I11060CB
On request
Normally open 120 l/min 350 bar CAV12-3S (10 bar): SL2H-CP3/H2I11-100C-B
AH.SL2HCP3H2I11100CB
On request
Normally open 120 l/min 350 bar CAV12-3S (adj. 2-20 bar): SL2H-CP3/H2I11-200S-B
AH.45331500
In stock
Normally open 120 l/min 350 bar CAV12-3S (adj. 2-20 bar): SL2H-CP3/H2I11-200S-B B
AH.SL2HCP3H2I11200SB
On request
