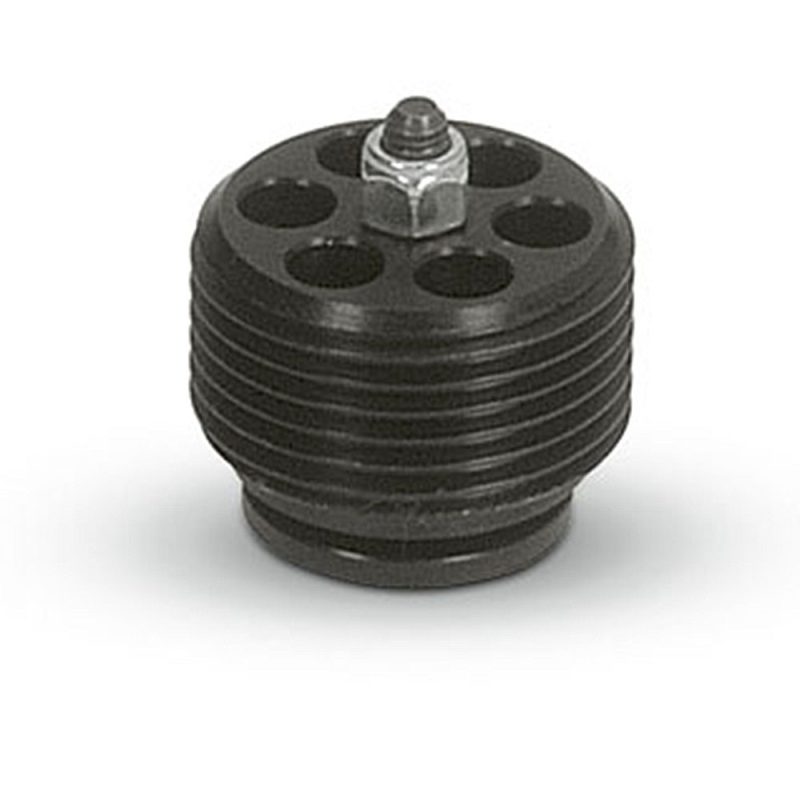

Marchesini VUBA hose burst valve

Name: Marchesini VUBA hose burst valve
Brand: Oleodinamica Marchesini
Availability: InStock

€14.04

Tax included Delivery in 1 to 5 working days.

(11.42 € No tax)

Marchesini VUBA hose burst valve, which closes if the flow surges, for example when a hose bursts. As a cartridge, in a threaded body or with a tube connection.

Check valves: 3/8" - V0780

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0780

€11.42 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VUBA prevents the load from coming down uncontrolled when a hose bursts: if the flow leaving the actuator suddenly rises above the set value, the plate closes and blocks the oil. It is fitted as close as possible to the cylinder, with V on the supply side and C on the actuator side. The closing flow is set by the distance S between the plate and the valve; the manufacturer recommends a value at least 1.5 times the normal flow of the circuit.

V0780: 3/8" cartridge, to screw into a G 3/8" seat
V0781, V0791 and V0801: cartridge fitted in a threaded body, G 3/8", G 1/2" and G 3/4"
V0784, V0786 and V0787: 3/8" with connection for 10L, 12L and 15L tube (DIN)
V0794: 1/2" with connection for 15L tube

Maximum pressure 350 bar. Maximum flow 50 l/min for 3/8", 80 l/min for 1/2" and 140 l/min for 3/4".

Source: Oleodinamica Marchesini technical catalogue, section Check valves; Oleodinamica Marchesini general catalogue 2018.
