VPC PWM regulator in DIN 43650 connector

Name: VPC PWM regulator in DIN 43650 connector
Brand: Scanrecofaber
SKU: 1.FBC.VPC
Price: 186.82 EUR
Availability: InStock

€186.82

Tax included

(151.89 € No tax)

Faber-Com VPC PWM regulator built into a DIN 43650 connector, which plugs onto the coil of a proportional valve and drives it with a 0-10 V signal.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.FBC.VPC

€151.89 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VPC is an electronic regulator for driving a proportional valve in open loop. The electronics sit inside the DIN 43650 connector itself, which plugs onto the coil: valve and regulator form a single unit, with no card in the cabinet.

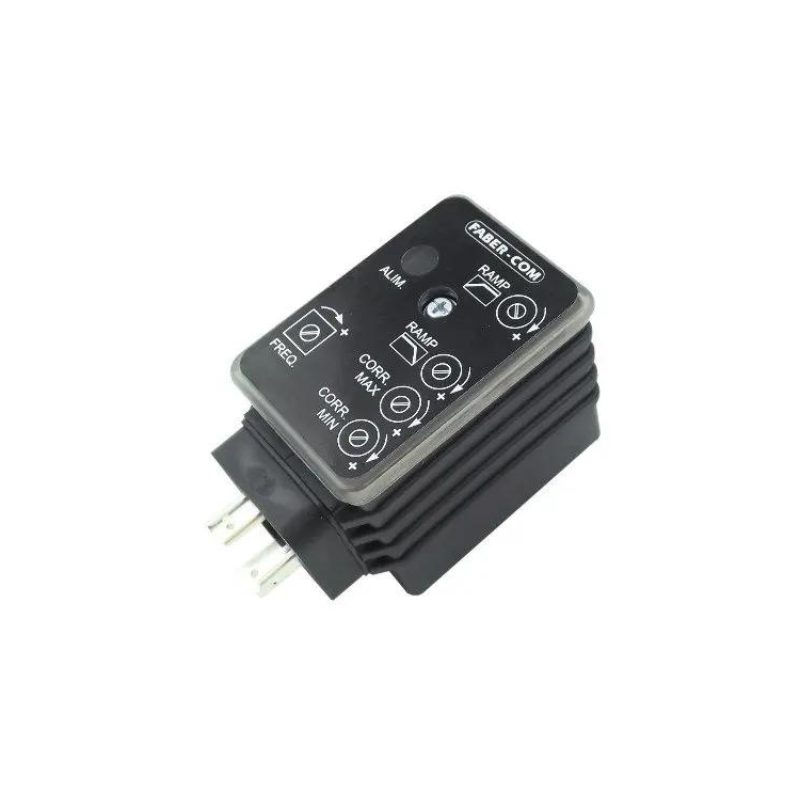

The coil current is proportional to the reference signal, which can come from a potentiometer, a joystick or a PLC. On the front there are trimmers for minimum and maximum current, rise and fall ramps (independent) and PWM frequency, plus a power LED.

Supply: 12 or 24 V DC ±10%, depending on the version
Reference signal: 0-10 V (100 kΩ input impedance)
Maximum output current: 2.5 A
Ramps: 0 to 3 s (0.1 to 10 s on the G version)
PWM: 120 Hz, adjustable from 50 to 400 Hz
Operating temperature: -10 to +50 °C; IP65 protection

Before ordering, check the machine voltage and the coil current.

Source: Faber-Com VPC data sheet, version 1.02, February 2011.
