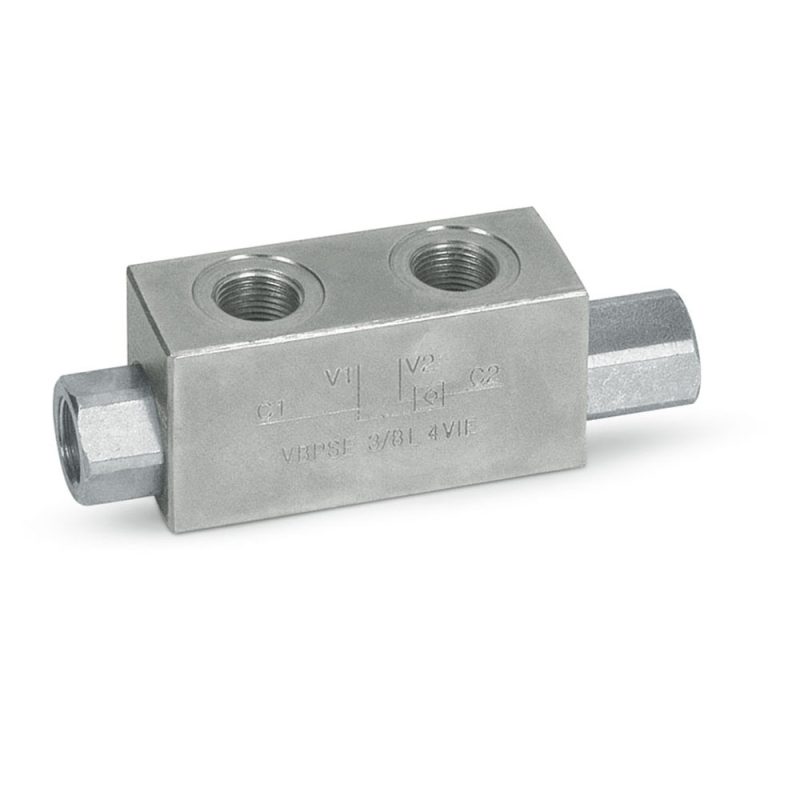

Marchesini VBPSE single pilot-operated check valve

Name: Marchesini VBPSE single pilot-operated check valve
Brand: Oleodinamica Marchesini
Availability: InStock

€43.11

Tax included Delivery in 1 to 5 working days.

(35.05 € No tax)

Marchesini VBPSE single-acting pilot-operated check valve, 3/8" to 3/4".

Check valves: 3/8" L - V0230

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0230

€35.05 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBPSE is a 4-way single pilot-operated check valve: it holds the cylinder in one direction only. C1 goes to the free-flow side of the actuator and C2 to the side that must be held; V1 and V2 go to the directional valve. Oil from C2 only leaves when the other line receives pilot pressure. Guided-cone sealing, no leakage.

3/8" L (V0230): 35 l/min
1/2" L (V0240): 50 l/min
1/2" (V0260): 70 l/min
3/4" (V0245): 100 l/min
3/8" PS (V0231): separate pilot, aluminium body, ratio 1:12, 35 l/min

Maximum pressure 350 bar. The PS version is not affected by back pressure on line V, and the manufacturer recommends it for two or more cylinders in parallel, with a flow control valve, for balanced lowering. The other versions have a zinc-plated steel body and NBR seals.

Source: Oleodinamica Marchesini technical catalogue, section Single pilot operated check valves; Oleodinamica Marchesini general catalogue 2018.
