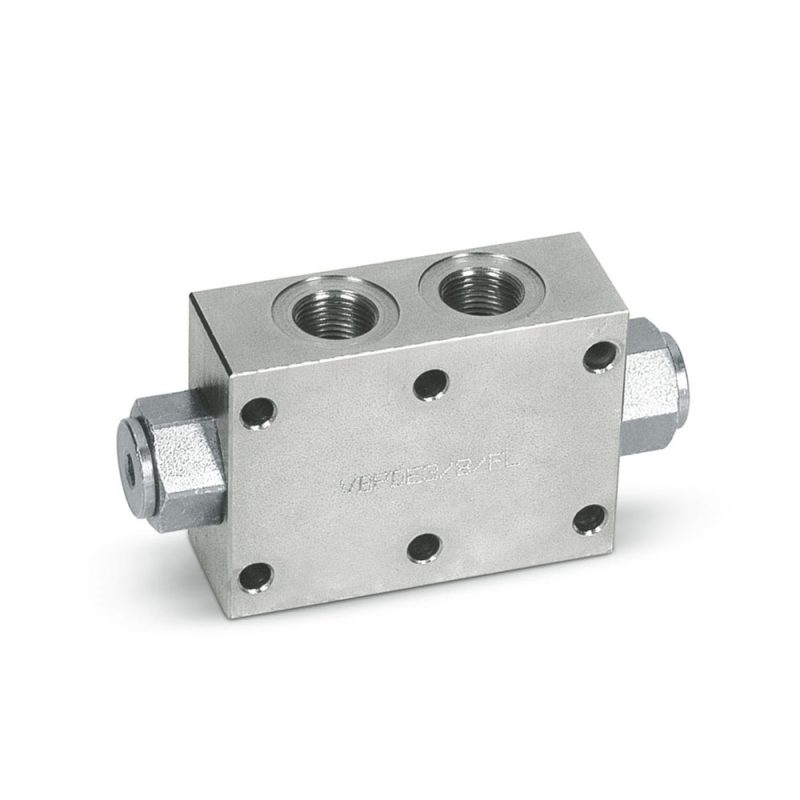

Marchesini VBPDE FL double pilot-operated check valve

Name: Marchesini VBPDE FL double pilot-operated check valve
Brand: Oleodinamica Marchesini
Availability: InStock

* Price on request *

Price including VAT at the legal rate

Marchesini VBPDE FL double-acting pilot-operated check valve, flanged.

Check valves: 3/8" - V0185

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0185

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBPDE FL is the flange-mounted version of the double pilot-operated check valve: ports C1 and C2 are on one face with O-ring seats, and the valve bolts directly onto the cylinder, with no pipes in between. It locks the cylinder in both directions until pilot pressure arrives from the opposite side, with guided-cone sealing and no leakage.

3/8" (V0185): V1 and V2 ports G 3/8", up to 30 l/min
1/2" (V0195): V1 and V2 ports G 1/2", up to 55 l/min

Maximum pressure 350 bar. Zinc-plated steel body, NBR seals. To mount the valve away from the cylinder, Marchesini has dedicated subplates: B5000 for the 3/8" and B5500 for the 1/2". Check the hole pattern on the cylinder face before ordering.

Source: Oleodinamica Marchesini technical catalogue, section Double pilot operated check valves.
