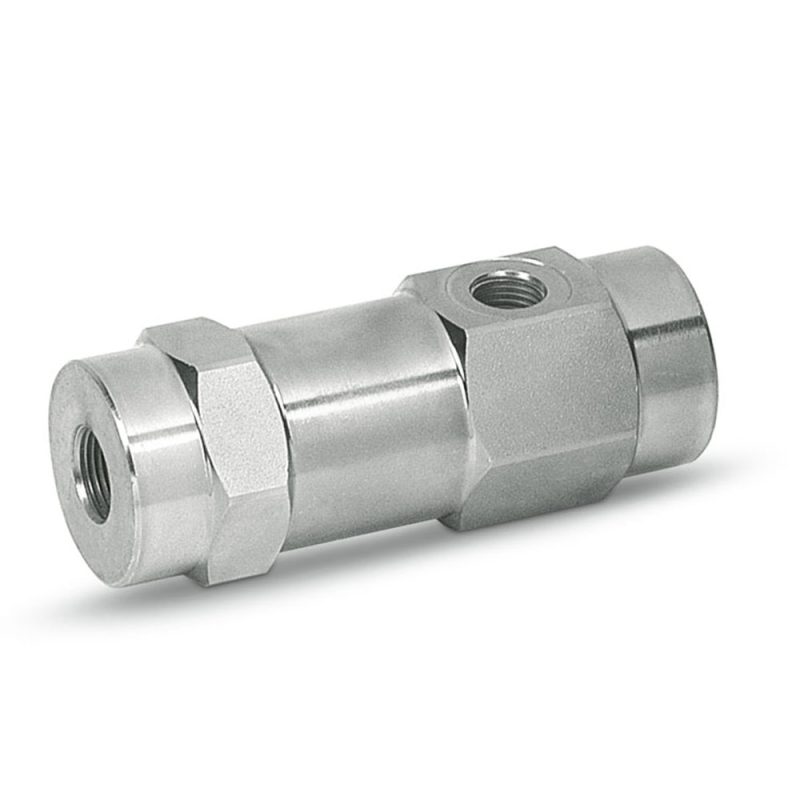

Marchesini VBPSL single pilot-operated check valve

Name: Marchesini VBPSL single pilot-operated check valve
Brand: Oleodinamica Marchesini
Availability: InStock

€50.42

Tax included Delivery in 1 to 5 working days.

(41 € No tax)

Single-acting pilot-operated check valve, in-line mounted, to hold a cylinder in position.

Check valves: 1/4" - V0201

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0201

€41.00 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBPSL lets oil flow freely in one direction and closes in the opposite direction until it receives pilot pressure. It is the usual way to hold a cylinder in position without relying on the tightness of the directional valve. It is mounted in line, in any position.

Connections are simple: V to the supply, C to the side of the actuator that must be held, and Pil to the pilot line. Sealing is by a guided poppet, with no leakage.

1/4" (V0201): 20 l/min, 350 bar, pilot ratio 1:9.8
3/8" (V0202): 30 l/min, 300 bar, ratio 1:6.5
1/2" (V0203): 45 l/min, 300 bar, ratio 1:4.6
3/4" (V0204): 80 l/min, 250 bar, ratio 1:4.4
1" (V0205): 120 l/min, 220 bar, ratio 1:3.5

All sizes have a G 1/4" pilot port. Zinc-plated steel body, hardened and ground steel internals, NBR seals. An 8 bar spring is available on request.

Source: Oleodinamica Marchesini general catalogue 2018.
