V-EQ flow divider

Name: V-EQ flow divider
Brand: Oleodinamica Marchesini
Availability: InStock

€209.57

Tax included Delivery in 1 to 5 working days.

(170.39 € No tax)

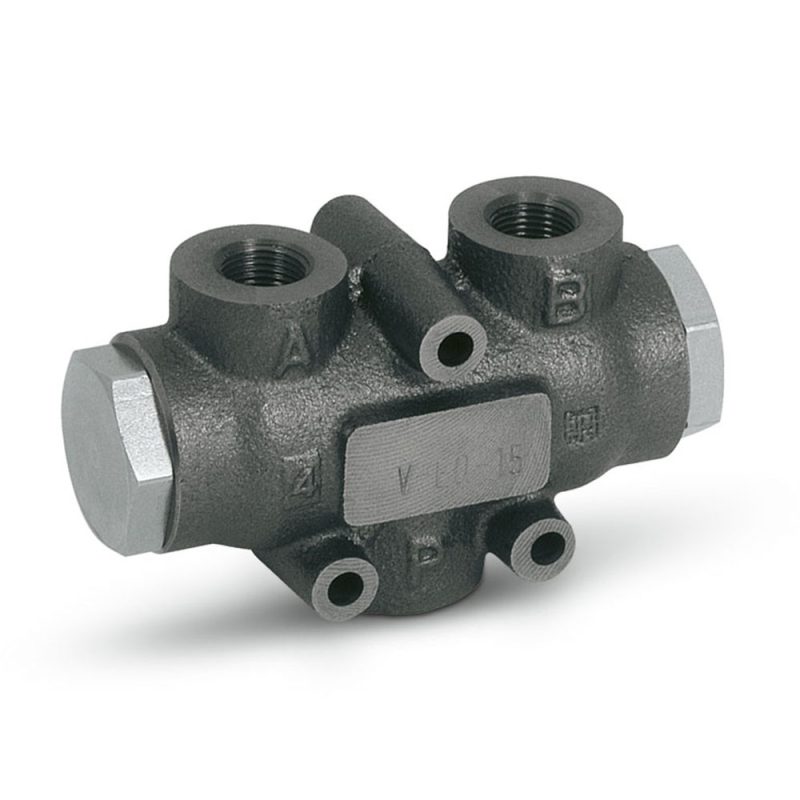

Marchesini V-EQ flow divider, sizes 30 (40-60 l/min) and 50 (60-80 l/min), which splits the flow into two equal parts.

Flow dividers: 30 - V1006

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA09.V1006

€170.39 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The V-EQ splits the flow entering P into two equal parts (50/50) to A and B and joins it again in the reverse direction, even when the two actuators carry different loads. It makes two equal cylinders, not mechanically linked and controlled by the same directional valve, move together.

V1006 (V-EQ 30): 40 to 60 l/min
V1007 (V-EQ 50): 60 to 80 l/min
Threads: P G1/2, A and B G3/8
Working pressure: 250 bar; peak: 300 bar
Synchronisation error below 2% of the stroke, made up at the end of stroke
Cast iron or steel body, hardened and ground steel internals, NBR and PTFE seals

The flow given is the flow entering P. Choose the size by the actual flow of the circuit.

Source: Oleodinamica Marchesini technical catalogue, section 8 Valvole equilibratrici.
