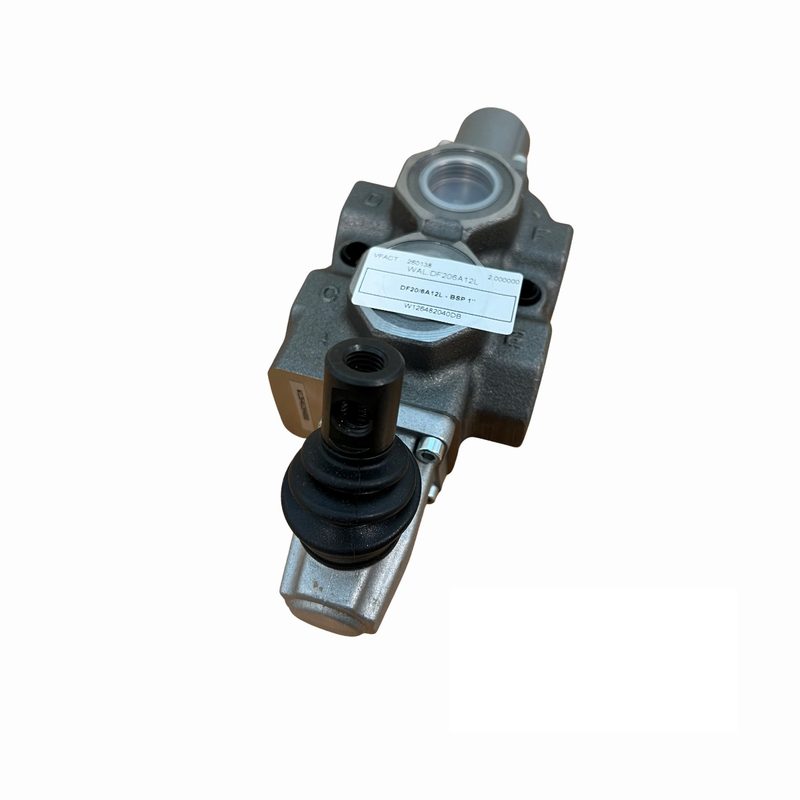

Walvoil DF20 / DF250 diverter valve

Name: Walvoil DF20 / DF250 diverter valve
Availability: InStock

€642.61

Price including VAT at the legal rate

(522.45 € Excluding VAT. VAT at the legal rate applies.)

Walvoil DF20 6-way diverter valve, with manual or hydraulic control, up to 140 l/min and 315 bar.

Model: DF20/6A12 BSP 1"

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. WAL.DF206A12L

€522.45 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The Walvoil DF20 is a monoblock diverter valve: it switches the oil from one circuit to another, for example to operate two actuators from a single section of the directional valve. It does not split the flow into equal parts; it sends it one way or the other.

Maximum flow: 140 l/min; maximum pressure: 315 bar
DF20/6 versions are 6-way and switch two lines at a time; G3/4 BSP threads as standard, or G1 on the options marked BSP 1"
DF20/6A12: type A spool, with detent in positions 1 and 2
DF20/6A18IA1L and DF20/6A18IB1L: on/off hydraulic control, with high (IA1) or low (IB1) pilot pressure and spring return to position 2
The list also includes the DF250/W025A-H005-DBS35

Before ordering, check the number of ways, the thread and the type of control of the fitted valve.

Source: Walvoil DF20 technical catalogue, D2WWEG01E.
