Block for MSV3V 3/2-way valve

Name: Block for MSV3V 3/2-way valve
Brand: Hydronit
SKU: 1.0671.E60403031
Price: 45.17 EUR
Availability: InStock

€45.17

Tax included

(36.73 € No tax)

Hydronit modular block for the MSV3V 3-way cartridge solenoid valve, 3/4-16 UNF cavity.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0671.E60403031

€36.73 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

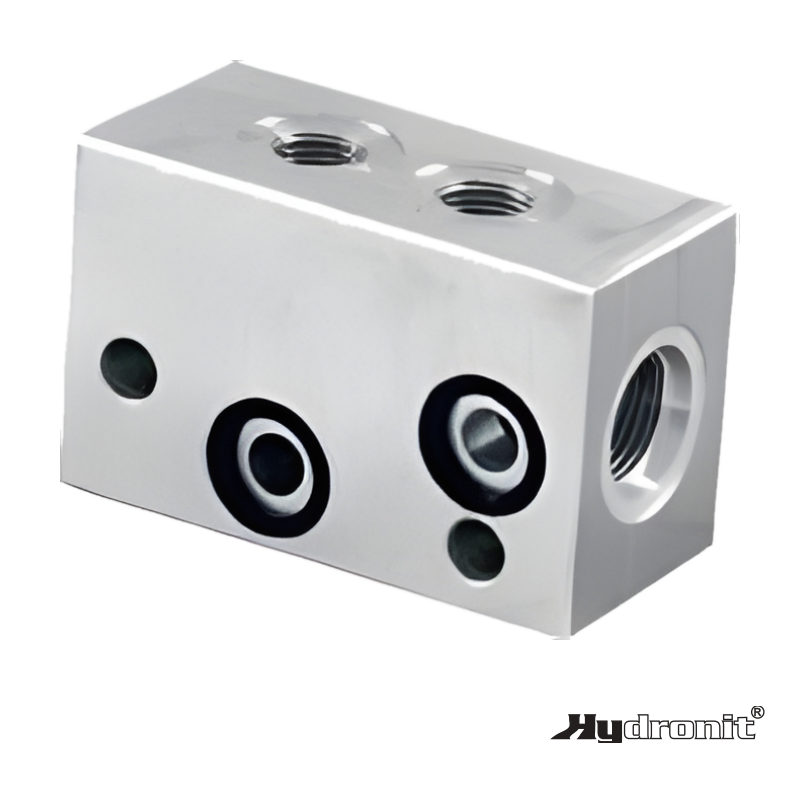

Hydronit modular block (E60403031) with one 3/4-16 UNF cavity for the MSV3V 3/2-way cartridge solenoid valve. It is added to the mini power pack to control a single-acting cylinder.

Maximum pressure: 350 bar
Ports: 2 × 1/4" BSP (9/16-18 UNF on the American version E60403031US)
Mounting: two M8 tie rods, grade 8.8 or higher, tightened to 16 Nm
Weight: 0.32 kg

The valve is not included. This 3-way block does not fit the square vertical tanks.

Source: Hydronit Hydraulic Power Packs, Smart Power Units & Electropumps technical catalogue, version 2025-01/EN; Hydronit AC & DC Compact Hydraulic Power Packs technical catalogue, version PPC 2017/1.
