Block for MSV or MDV 2/2-way valves
€26.48
Price including VAT at the legal rate
(21.53 € Excluding VAT. VAT at the legal rate applies.)

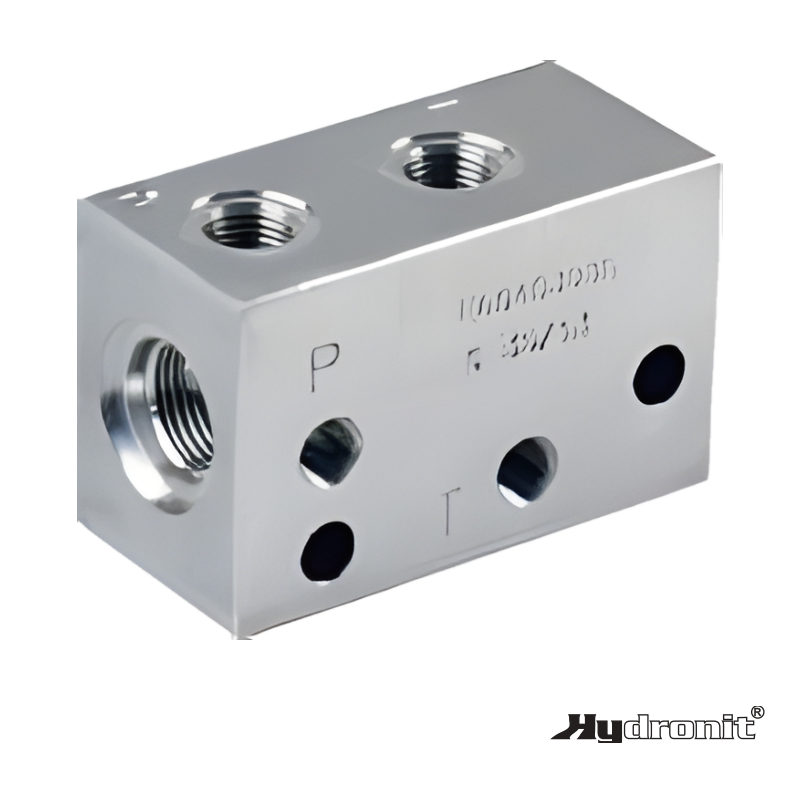

Hydronit modular block for one MSV or MDV 2-way cartridge solenoid valve, 3/4-16 UNF cavity.
Hydronit modular block (E60403030) with one 3/4-16 UNF cavity for a 2-way cartridge solenoid valve from the MSV or MDV series. It is added to the mini power pack to control, for example, a single-acting cylinder; the blocks can be stacked.
- Maximum pressure: 350 bar
- Ports: 2 × 1/4" BSP (9/16-18 UNF on the American version E60403030US)
- Mounting: two M8 tie rods, grade 8.8 or higher, tightened to 16 Nm
- Weight: 0.35 kg
The valve is not included.
Source: Hydronit Hydraulic Power Packs, Smart Power Units & Electropumps technical catalogue, version 2025-01/EN; Hydronit AC & DC Compact Hydraulic Power Packs technical catalogue, version PPC 2017/1.
1.0671.E60403030
