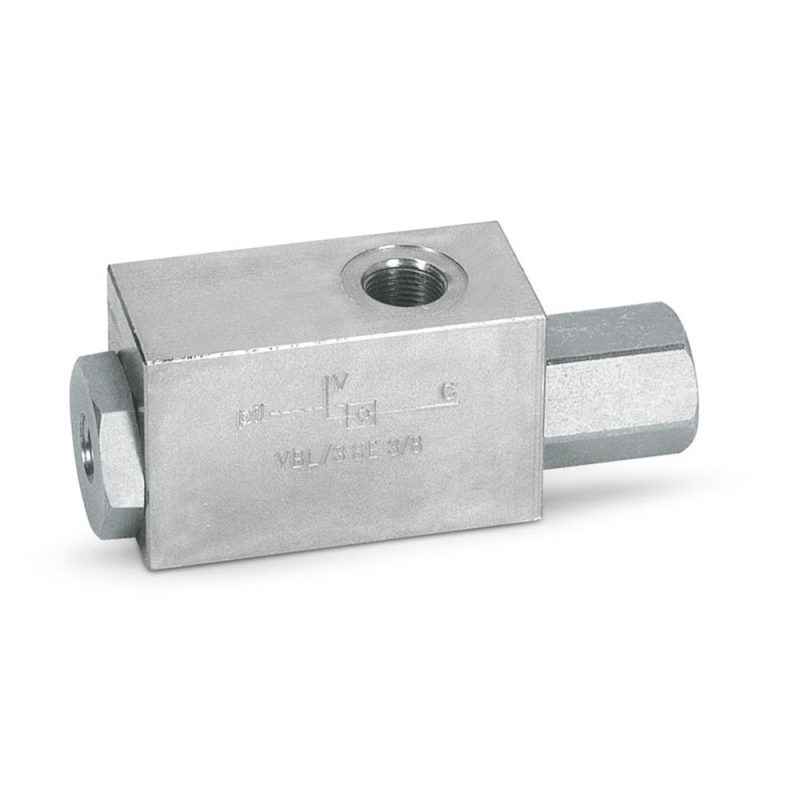

Marchesini VBL/3 pilot-operated check valve

Name: Marchesini VBL/3 pilot-operated check valve
Brand: Oleodinamica Marchesini
Availability: InStock

€42.32

Tax included Delivery in 1 to 5 working days.

(34.4 € No tax)

Marchesini VBL/3 pilot-operated check valve, 1/4" to 1/2".

Check valves: 1/4" - V0273

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0273

€34.40 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBL/3 is a single-acting, 3-way pilot-operated check valve with a high pilot ratio and a device that delays closing. It lets oil flow freely in one direction and only lets it back when pilot pressure is applied, which holds the cylinder in position. The manufacturer recommends it for circuits with heavy loads, where it helps to avoid vibration.

1/4" (V0273): 20 l/min, ratio 1:8, cracking 4 bar
3/8" (V0275): 40 l/min, ratio 1:8, cracking 3.5 bar
1/2" (V0277): 70 l/min, ratio 1:7, cracking 3.5 bar

Maximum pressure 350 bar and G 1/4" pilot port on all sizes. Connect V to the supply, C to the actuator side that must be held and Pil to the pilot line. For use with open-centre directional or solenoid valves, the manufacturer asks to be consulted first.

Source: Oleodinamica Marchesini technical catalogue, section Single pilot operated check valves; Oleodinamica Marchesini general catalogue 2018.
