90° male-female ORFS elbow

Name: 90° male-female ORFS elbow
Availability: InStock

€20.37

Tax included Delivery in 1 to 5 working days.

(16.56 € No tax)

90° male-female ORFS elbow.

ORFS accessory: 1"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0939.1

€16.56 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

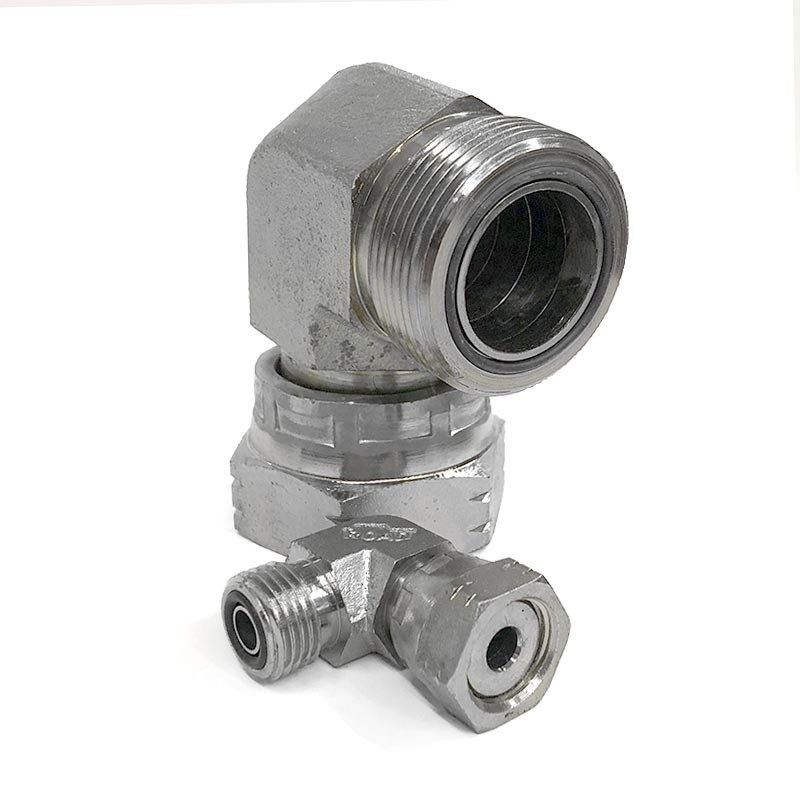

90° elbow with a male ORFS end on one side and a female ORFS nut on the other. The nut fits straight onto an existing male ORFS end (on an adapter, a valve or a manifold) and turns before tightening, so the elbow can face the way the hose needs to go.

An ORFS connection seals with an O-ring seated in the flat face of the male, pressed against the face of the female part. When fitting, check that the O-ring is in place and in good condition.

Sizes available, the same on both sides: 9/16", 11/16", 13/16", 1", 1.3/16", 1.7/16" and 1.11/16". There is also one option with different sizes, 1.7/16" - 1.5/16".

To identify the ORFS size, measure the outside diameter of the male thread: about 14.3 mm for 9/16", 17.5 mm for 11/16", 20.6 mm for 13/16", 25.4 mm for 1" and 30.2 mm for 1.3/16".

Reference 1.0939.1
