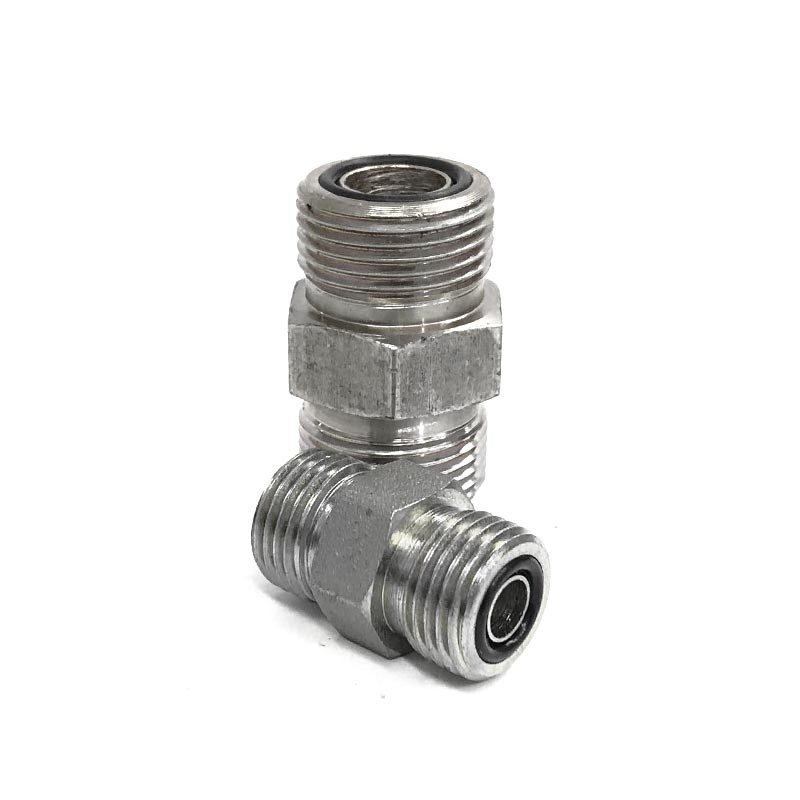

Male-male ORFS-UNF bush

Name: Male-male ORFS-UNF bush
Brand: FOR
Availability: InStock

€15.08

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(12.26 € Excluding VAT. VAT at the legal rate applies.)

Bush with a male ORFS end and a male UNF end, to fit an ORFS hose fitting to a UNF port on a pump or manifold. ORFS from 9/16" to 1.7/16".

ORFS accessory: 1" - 1.1/16"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0946.11116

€12.26 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Male-male bush with an ORFS thread on one side and UNF on the other. The UNF side fits a UNF port (ORB type) on the pump, manifold or valve; the female ORFS hose fitting tightens onto the ORFS side.

An ORFS connection seals with an O-ring seated in the flat face of the male, pressed against the face of the female part. When fitting, check that the O-ring is in place and in good condition.

There are 13 combinations, with ORFS from 9/16" to 1.7/16" and UNF from 7/16" to 1.5/16". In the option list the first size is the ORFS and the second the UNF: 13/16" - 3/4", for example, is ORFS 13/16" with UNF 3/4".

Check the UNF port size before ordering: about 14.3 mm outside diameter for 9/16", 19 mm for 3/4" and 22.2 mm for 7/8".
