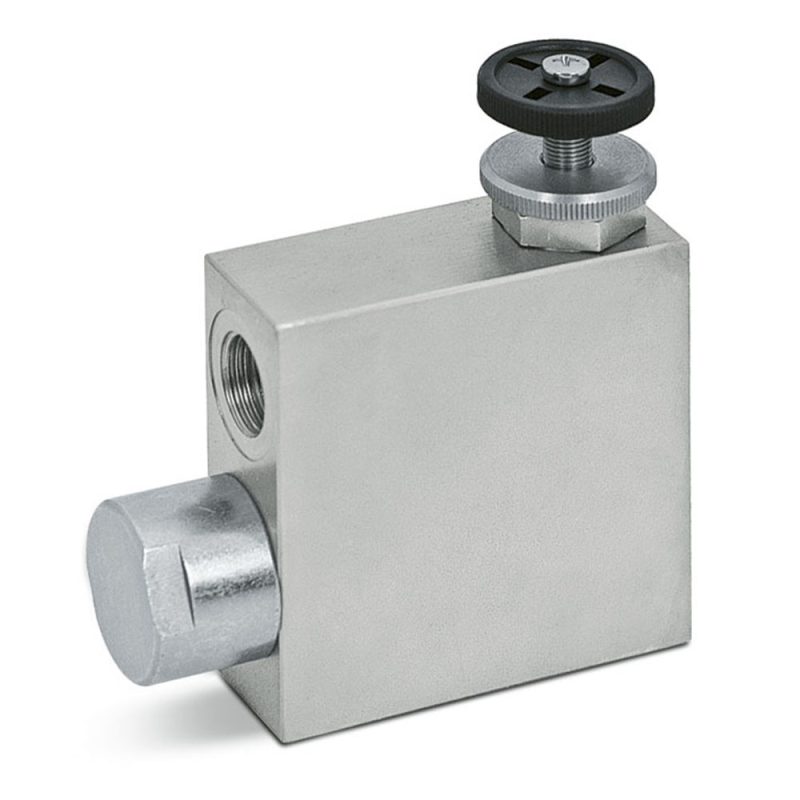

Marchesini RFP3 3-way priority flow control valve

Name: Marchesini RFP3 3-way priority flow control valve
Brand: Oleodinamica Marchesini
Availability: InStock

€154.74

Tax included Delivery in 1 to 5 working days.

(125.81 € No tax)

3-way flow control valve that keeps the flow sent to P constant and sends the excess to tank. In 1/2" and 3/4" BSP, up to 350 bar.

3-way flow regulators: 1/2" - V1120

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA07.V1120

€125.81 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The RFP3 keeps the flow leaving port P constant, whatever the pressure the actuator demands and the inlet flow. The surplus goes straight to tank through port T. E connects to the supply and P to the actuator or the branch that needs controlled flow; the flow is set with the handwheel, after loosening the locknut.

1/2" (V1120): inlet up to 80 l/min, controlled up to 60 l/min
3/4" (V1130): inlet up to 120 l/min, controlled up to 100 l/min
Maximum pressure: 350 bar

Other versions: V1120/VU with check valve for free return, V1120/VMP with built-in relief valve, V1121 to mount straight onto OMP/OMR motors and V1122 for OMS motors.

Source: Oleodinamica Marchesini general catalogue 2018.
