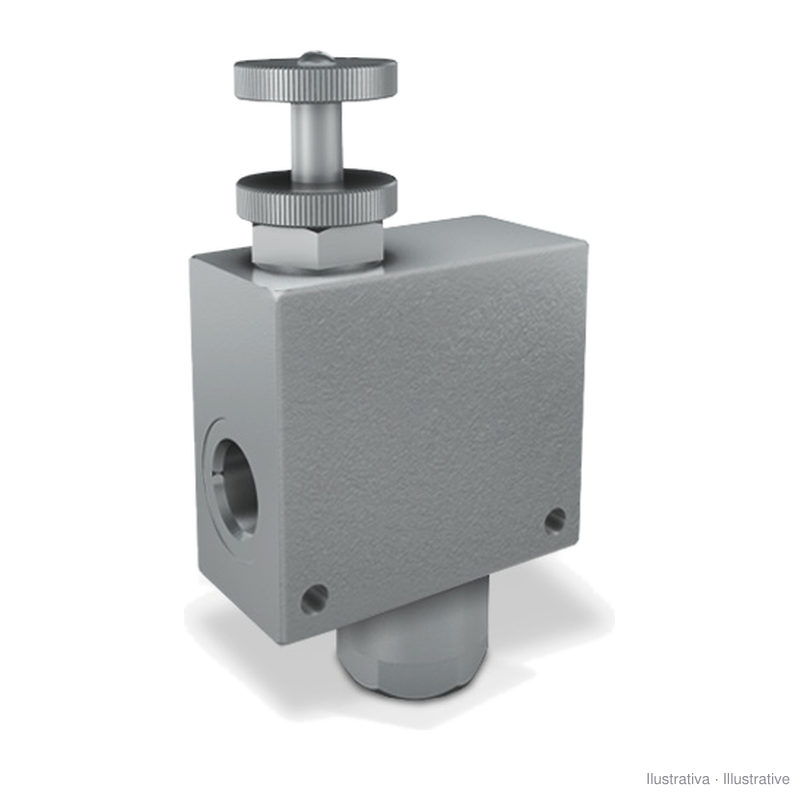

Marchesini RFP2 2-way compensated flow control valve
€180.33
Tax included
Delivery in 1 to 5 working days.
(146.61 € No tax)
2-way compensated flow control valve that holds the flow even as the pressure changes. From 1/2" to 1" BSP, 50 to 160 l/min, up to 350 bar.
The RFP2 keeps the flow leaving port P constant at the set value, whatever the pressure the circuit demands. Being 2-way, it has no tank port: the surplus flow returns to tank through the main relief valve of the system, so that valve must be correctly set.
E connects to the supply and P to the circuit that needs the controlled flow. It is set with the handwheel, after loosening the locknut.
- 1/2" (V1125): up to 50 l/min
- 3/4" (V1135): up to 90 l/min
- 1" (V1145): up to 160 l/min
- Maximum pressure: 350 bar
Zinc-plated steel body, hardened and ground internals, NBR seals.
Source: Oleodinamica Marchesini general catalogue 2018.
1.MA07.V1135
Data sheet
- Port thread
- G 1
G 1/2
G 3/4
3 other products in the same category:
Viewed products
Are you an OEM? Reseller? Workshop?
All options for this item (3)
Description
Part number
Availability
Price
1/2" - V1125 (50 l/min)
1.MA07.V1125
On request
3/4" - V1135 (90 l/min)
1.MA07.V1135
Last units
1" - V1145 (160 l/min)
1.MA07.V1145
Last units
No option matches the filters.
2-way compensated flow control valve that holds the flow even as the pressure changes. From 1/2" to 1" BSP, 50 to 160 l/min, up to 350 bar.
