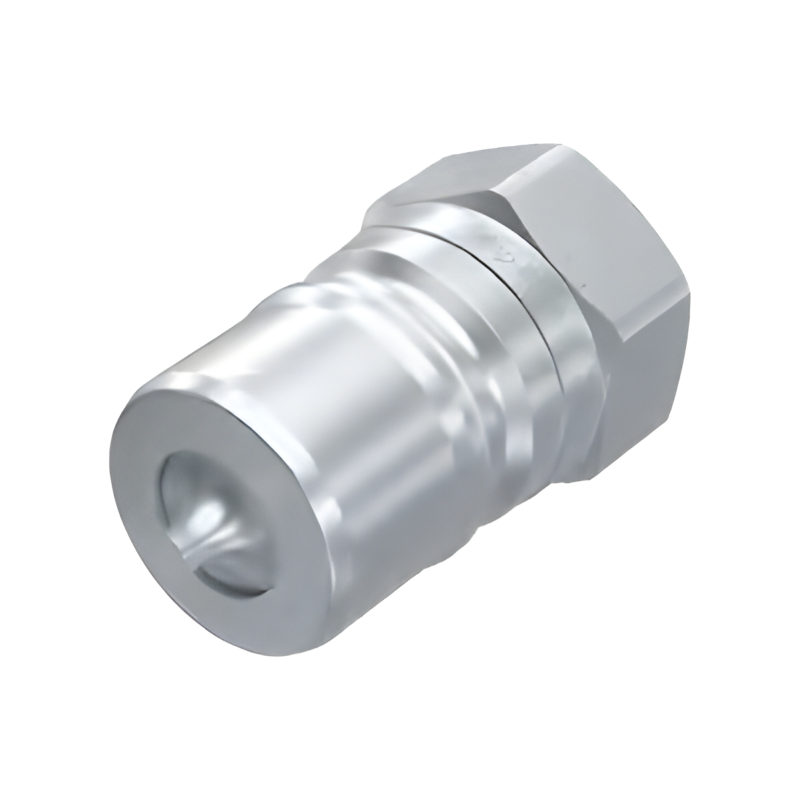

DNP PBV1 ISO-B male quick coupling

Name: DNP PBV1 ISO-B male quick coupling
Availability: InStock

€11.56

Tax included Delivery in 1 to 5 working days.

(9.4 € No tax)

DNP PBV1 male quick coupling, ISO-B type (ISO 7241-B), with BSP 3/4" or SAE 3/4"-16 UNF thread.

ISO-B male coupler: 3/4" - PVB1.2019.003

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.4503.B34

€9.40 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

DNP PBV1 series male quick coupling to ISO 7241-B, with poppet valve. It connects to the ISO-B female of the same size; it does not fit ISO-A females.

Steel with zinc-iron plating, NBR seals
Working pressure of 250 bar, according to the DNP catalogue
Working temperature from -25 °C to +100 °C
Cannot be connected with residual pressure

There are two versions. PBV1.2019.003 is size DN20 with BSP 3/4" female thread. PBV1.1019.033 is the smaller size, DN10, with SAE 3/4"-16 UNF O-ring boss thread: it connects to ISO-B DN10 (3/8") females, not to 3/4" ones. Check the size of the female before choosing.

Source: DNP hydraulic quick release couplings technical catalogue, 2023.

Reference 1.4503.B34
