Oil level gauge with thermometer 76 mm FL1

Name: Oil level gauge with thermometer 76 mm FL1
Brand: Miselli
Availability: InStock

€21.79

Tax included Delivery in 1 to 5 working days.

(17.72 € No tax)

Miselli FL1 oil level gauge with thermometer, 76 mm between holes, with M10 or M12 bolts.

Level gauge: 76 - M10

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2060.7610

€17.72 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

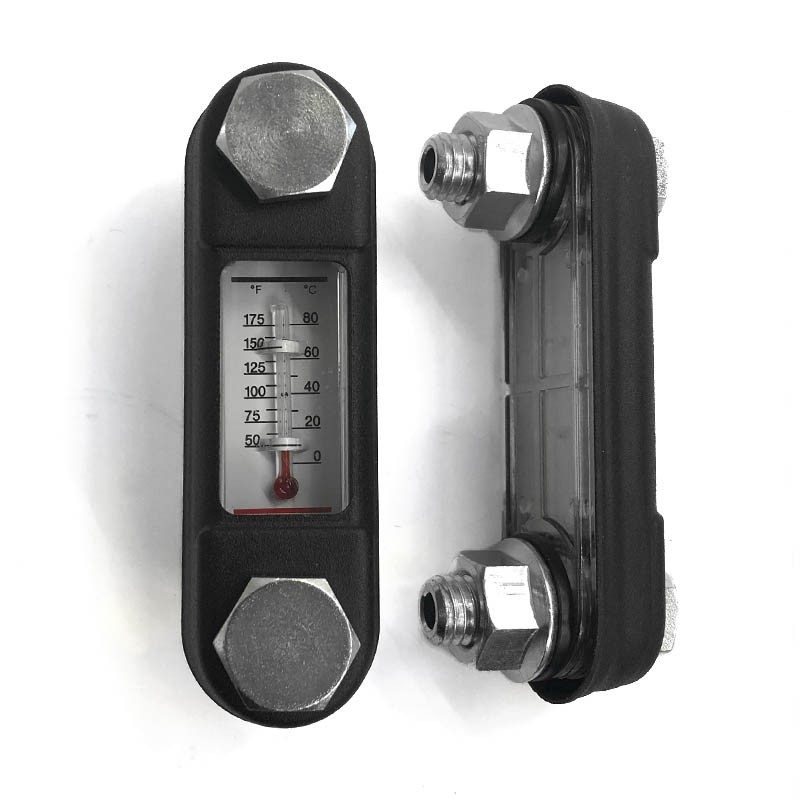

Oil level gauge for mounting on the tank wall, with 76 mm between the fixing holes and a built-in thermometer, so that oil level and temperature can be read at a glance.

The body is made of transparent polyamide, resistant to mineral oil and diesel, with an outer guard in black painted steel and a white screen marked with minimum and maximum levels. Each hollow bolt seals with an NBR O-ring and flat washer.

Bolts: M10 or M12 (choose in the options)
Mounting from outside into two threaded holes, or from inside with the flanged nuts supplied
Maximum recommended tightening torque: 5 Nm

Check the distance between the tank holes and the bolt thread of the gauge you are replacing.

Source: Miselli Accessories for Hydraulic Components technical catalogue, 2017.
