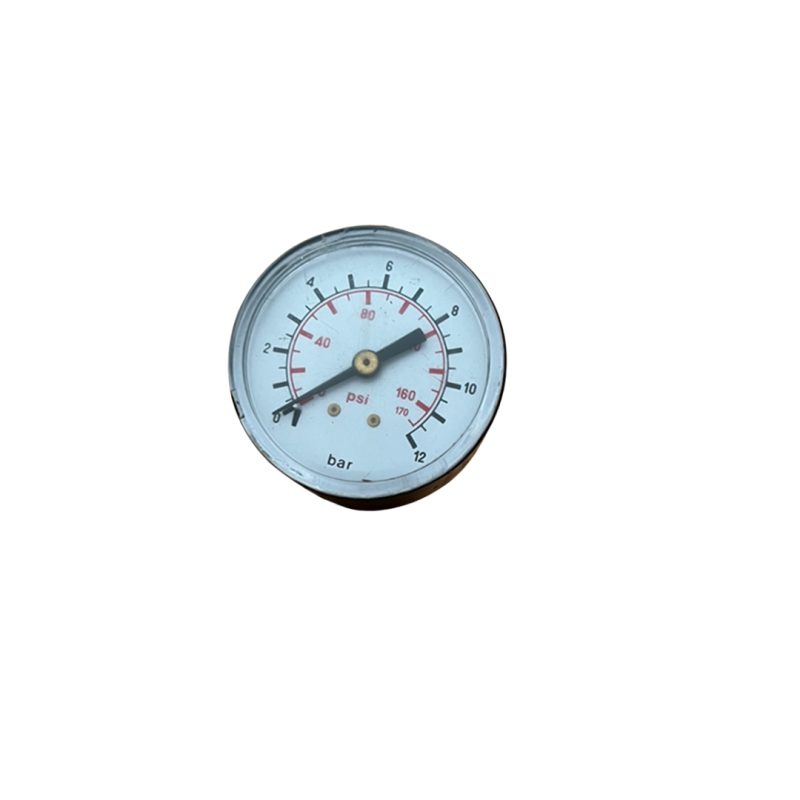

Pressure gauge 0-12 bar DN50, back connection 1/4"

Pressure gauge with a 50 mm dial and a 0 to 12 bar scale. The connection is horizontal, with a 1/4" thread at the rear of the case, so the dial faces forward when the gauge is mounted on a manifold, a regulator or a panel.

The 12 bar scale suits compressed air, lubrication circuits, pilot lines and other low-pressure circuits. The normal working pressure should stay below two thirds of the scale, that is up to about 8 bar.

There are also 0-6 bar and 0-10 bar versions with the same connection. Check the thread of the connection point before ordering.
