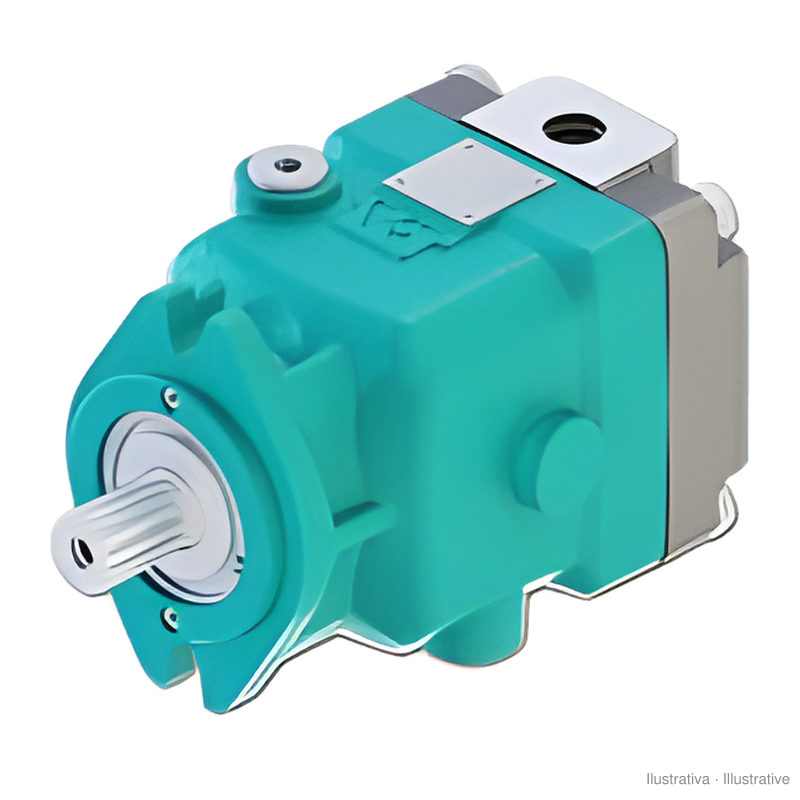

M+S MAP-A (SAE-A) piston motor
search
  • M+S MAP-A (SAE-A) piston motor

M+S MAP-A (SAE-A) piston motor

€1,937.49
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(1575.2 € Excluding VAT. VAT at the legal rate applies.)

M+S MAP28 fixed displacement axial piston hydraulic motor, with 2-bolt SAE-A flange, twin side ports and 25 mm keyed shaft. 22 or 28 cc/rev.

Model: MAP-A-T-22-ML-2V
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. MS.PAT22ML2V

€1,575.20 excl. VAT

Request a commercial proposal

M+S Hydraulic swashplate axial piston motor, MAP28 frame, with 2-bolt SAE-A flange (82.5 mm pilot). It has a cast iron housing, hardened shaft and radial and axial roller bearing.

  • MAP-A-T-22-ML-2V: 22.15 cc/rev, 123 Nm continuous
  • MAP-A-T-28-ML-2V: 28.47 cc/rev, 159 Nm continuous
  • Pressure: 350 bar continuous, 420 bar intermittent; up to 4200 rpm
  • T: twin side ports; size 2: A and B G1/2, drain G1/2
  • ML shaft: 25 mm parallel with A8x7x25 key (DIN 6885); V: FKM seals

The motor always needs a case drain connected to the tank and must be filled with oil before starting.

Source: M+S Hydraulic Axial Piston Motors and Pumps (MAP/PAP) technical catalogue, version 1.4g, April 2018.
