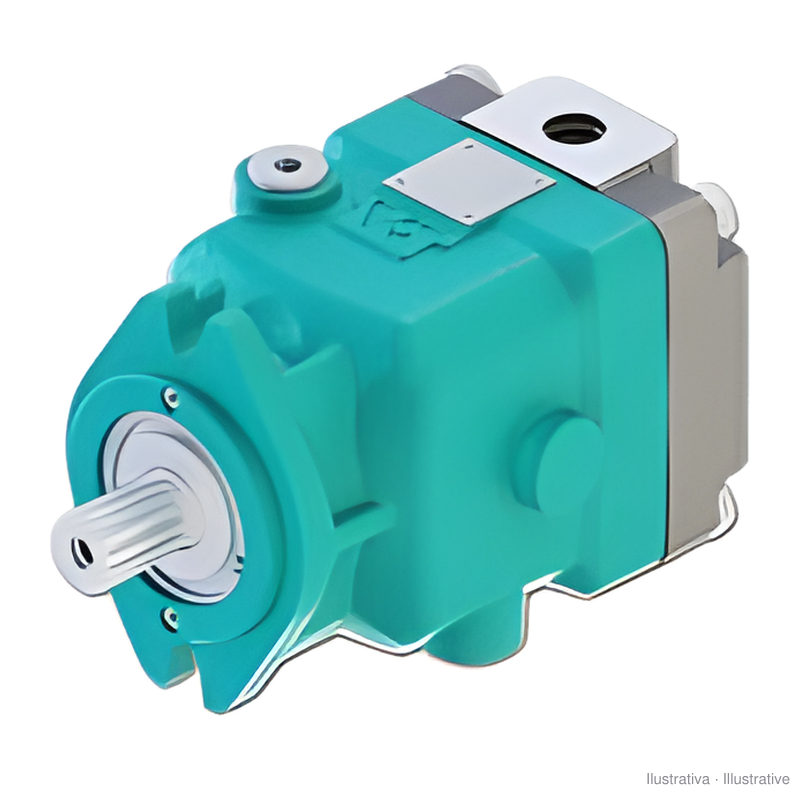

M+S MAP-B (SAE-B) piston motor
search
  • M+S MAP-B (SAE-B) piston motor

M+S MAP-B (SAE-B) piston motor

€1,745.71
Tax included Delivery in 1 to 5 working days.

(1419.28 € No tax)

M+S MAP fixed displacement axial piston hydraulic motor, with 2-bolt SAE-B flange and twin side ports. From 22 to 62 cc/rev.

Model: MAP-B-T-28-ML-6V (SAE-B-2F diam. 25) side 3/4
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. MS.PBT28ML6V

€1,419.28 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: Splined shafts on pumps and motors: SAE, DIN 5480 and DIN 5482

The M+S Hydraulic MAP motors are swashplate axial piston motors with fixed displacement and heavy-duty build, with cast iron housing and roller bearings. This item groups the versions with 2-bolt SAE-B flange (101.6 mm pilot) and twin side ports (T).

  • MAP28 frame: 22 and 28 cc/rev, up to 4200 rpm
  • MAP50 frame: 35, 40, 46 and 50 cc/rev, up to 4000 rpm
  • Pressure: 350 bar continuous and 420 bar intermittent
  • Shafts: SAE splined (SD 13 teeth, SF 15 teeth, SK 14 teeth), DR, and ML 25 mm parallel keyed
  • V at the end of the code: FKM seals

The motor always needs a case drain connected to the tank and must be filled with oil before starting. Check the code on the name plate, especially the shaft and the port size.

Source: M+S Hydraulic Axial Piston Motors and Pumps (MAP/PAP) technical catalogue, version 1.4g, April 2018.

MS.PBT28ML6V

Specific References

MPN
PBT28ML6V

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (15)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
MAP-B-T-22-SD-6V
MS.PBT22SD6V
Last units
MAP-B-T-28-ML-6V (SAE-B-2F diam. 25) side 3/4
MS.PBT28ML6V
Last units
MAP-B-T-28-SF-6V
MS.PBT28SF6V
Last units
MAP-B-T-35-DR-2V
MS.PBT35DR2V
Last units
MAP-B-T-35-SD-2V
MS.PBT35SD2V
Last units
MAP-B-T-35-SF-2V
MS.PBT35SF2V
Last units
MAP-B-T-40-DR-2V
MS.PBT40DR2V
Last units
MAP-B-T-40-SF-2V
MS.PBT40SF2V
On request
MAP-B-T-46-DR-2V
MS.PBT46DR2V
On request
MAP-B-T-46-SF-2V
MS.PBT46SF2V
On request
MAP-B-T-46-SK-2V
MS.PBT46SK2V
Last units
MAP-B-T-50-DR-2V
MS.PBT50DR2V
Last units
MAP-B-T-52-SF-2V (SAE-B-2F 15T)
MS.PBT52SF2V
Last units
MAP-B-T-58-SF-2V (SAE-B-2F 15T)
MS.PBT58SF2V
Last units
MAP-B-T-62-SF-2V (SAE-B-2F 15T)
MS.PBT62SF2V
On request
