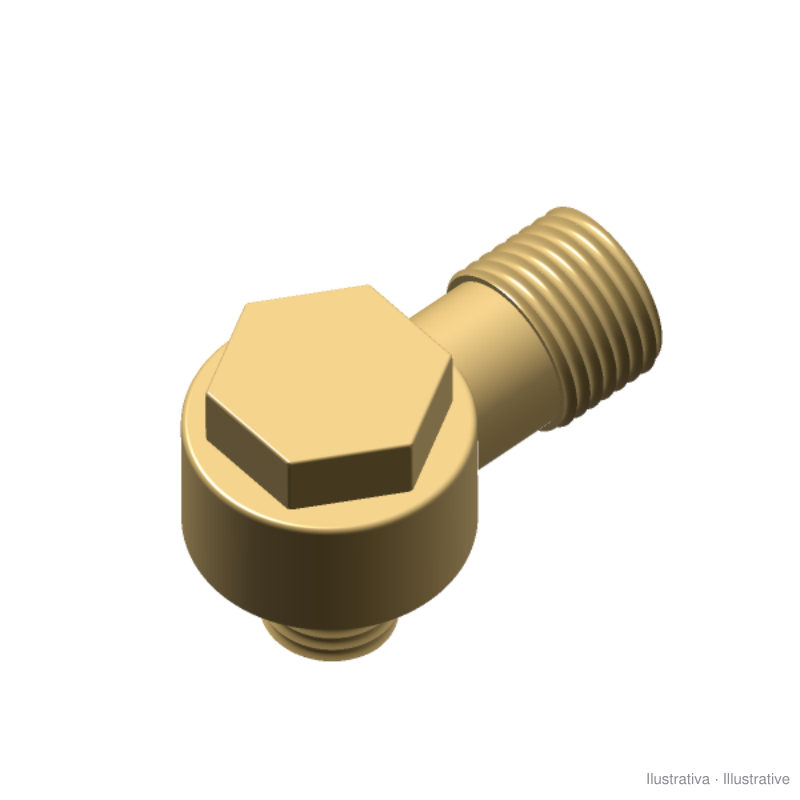

Swivel L compression fitting with hollow bolt (banjo), Ø8 mm tube x G 1/4" (Aignep 13550)

Swivel L fitting from the Aignep 13000 series (code 13550 8-1/4). The G 1/4" hollow bolt clamps the body against the port and the fluid flows through it; the body can be turned to any direction before final tightening. On the other side, nut and olive for Ø8 mm tube.

• Brass body, nut and olive
• For copper, steel, aluminium or brass tube; with an internal reinforcing sleeve (Aignep 10770), also for PA6, PA11 or PA12 plastic tube
• Water, oil, compressed air and general hydraulic and pneumatic fluids

For Ø8 mm copper tube with a 1 mm wall, the catalogue gives a maximum pressure of 135 bar with a safety factor of 4. Useful in tight spaces where a threaded elbow cannot be lined up.

Source: Aignep technical catalogue, Catálogo Tarifa 2016.
