5/2 bistable G1/8 solenoid valve with external pilot - Line 120
search
  • 5/2 bistable G1/8 solenoid valve with external pilot - Line 120

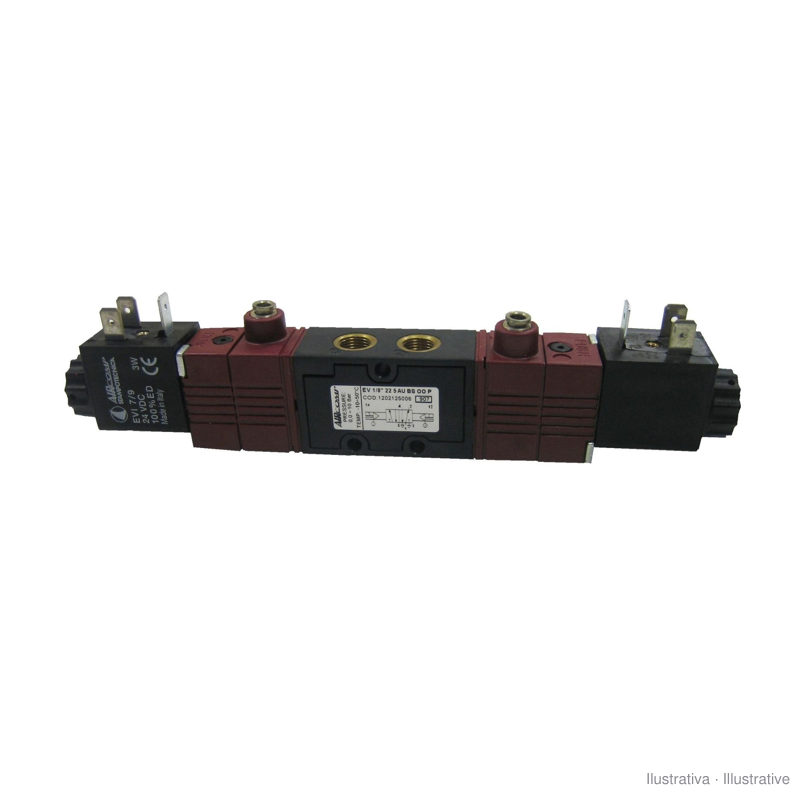

Aircomp 1202125004 5/2 bistable G1/8 solenoid valve, line 120, with external pilot

€43.33
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(35.23 € Excluding VAT. VAT at the legal rate applies.)

Aircomp line 120 5/2 bistable pneumatic solenoid valve, with G1/8 ports and separate pilot air supply. End-of-stock item.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1202125004

€35.23 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

5/2 solenoid valve with two solenoids and pilot assisted by an external supply (EV 1/8" 22 5 SA BS OO P in the Aircomp catalogue). Because the pilot air comes in through its own port, the valve switches even with low or zero pressure in the main circuit. It is bistable: it holds the last position until it receives a pulse on the other coil.

  • Ports: G1/8
  • Working pressure: 0 to 10 bar
  • Pilot supply pressure: 0.5 to 10 bar
  • Pilot port: M5 or Ø4 push-in fitting
  • 22 mm coils, sold separately
  • Weight: 0.118 kg

Source: Aircomp Valves technical catalogue.

1202125004

Specific References

MPN
1202125004
