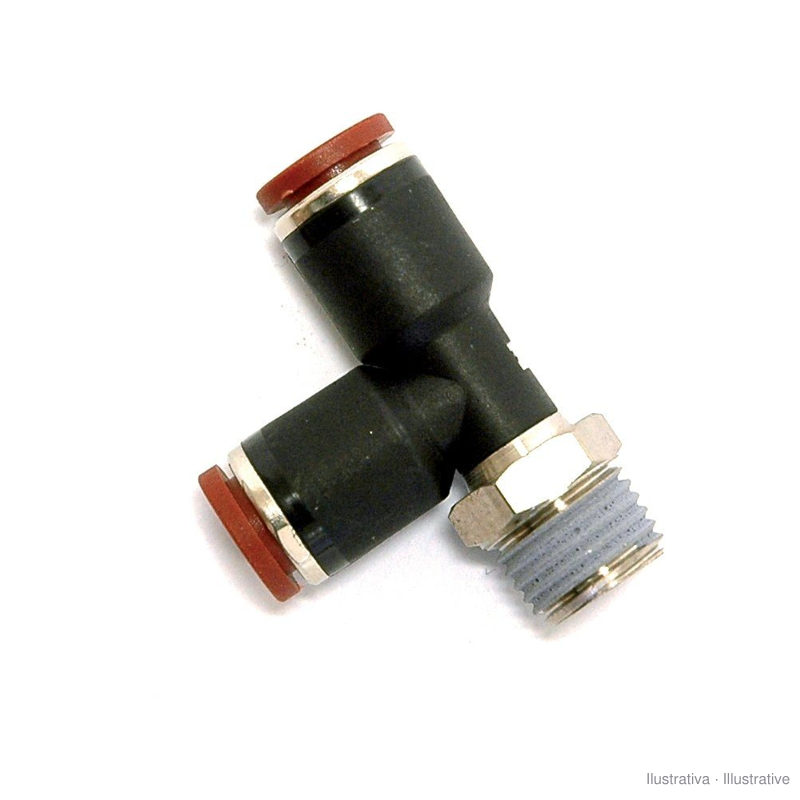

Aircomp push-in tapered male run tee - Line 301

Aircomp lateral male push-in tee, taper thread, Line 301

Name: Aircomp lateral male push-in tee, taper thread, Line 301
Availability: InStock

€3.01

Tax included Delivery in 1 to 5 working days.

(2.45 € No tax)

Aircomp 301.07 lateral push-in tee, R1/8 to R1/2 taper male thread, for Ø4 to Ø12 mm tube. End-of-stock item.

Thread: R1/4 taper

Tube: Ø10 mm

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 301071014

€2.45 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Aircomp lateral male tee, series 301.07 (Line 301, taper thread with pre-applied sealant). One tube outlet is in line with the thread and the other at 90° to the side: it feeds one point and carries the line on to another at the same time.

For compressed air and vacuum (down to -750 mmHg); not for other gases or liquids
Working pressure: 0 to 16 bar
Temperature: -20 to 80 °C
Recommended tube: nylon or polyurethane

Sizes (tube and thread): Ø4 mm with R1/8; Ø6 mm with R1/8; Ø8 mm with R1/8 or R1/4; Ø10 mm with R1/4 or R3/8; Ø12 mm with R3/8 or R1/2.

With both outlets to the sides and the thread in the centre, the right part is the central tee (series 301.03).

Source: Aircomp Raccordi technical catalogue, version 2.0, April 2011.

Reference 301071014
