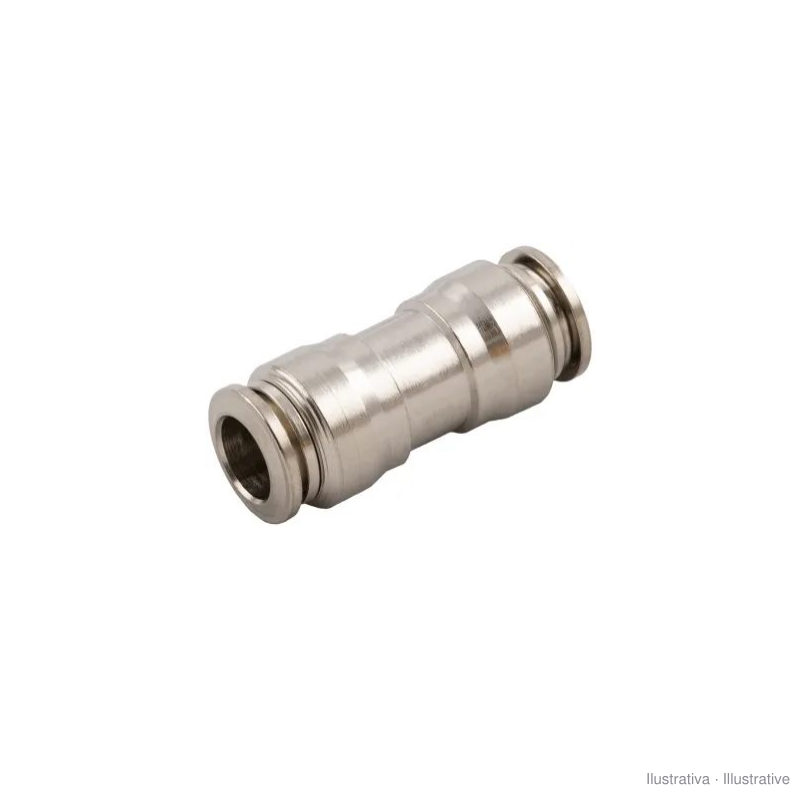

Push-in straight union with metal collet (Aignep 57040)

Straight push-in union with metal ring (Aignep 57040)

Name: Straight push-in union with metal ring (Aignep 57040)
Availability: InStock

€1.15

Tax included Delivery in 1 to 5 working days.

(0.94 € No tax)

Straight tube-to-tube push-in union, nickel-plated brass, Aignep 57000 series, for Ø6 or Ø8 mm tube. End-of-stock item.

Tube: Ø6 mm

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 57040 6

€0.94 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Description
Product Details

Straight union from the Aignep 57000 series (code 57040). It joins two tubes of the same diameter in line, for example to repair a cut tube or extend a line, without tools: both ports are push-in.

Nickel-plated brass body and release ring, AISI 301 stainless steel collet, NBR seals
Pressure -0.99 to 20 bar
Temperature -20 to 80 °C
Polyamide PA6, PA11 or PA12, polyethylene or polyurethane tube (preferably 98 Shore A)

Sizes: Ø6 mm tube (57040 6) or Ø8 mm tube (57040 8). Before fitting, check that the tube end is clean and free of marks from a previous collet.

Source: Aignep technical catalogue, Catálogo Tarifa 2016.

Reference 57040 6
