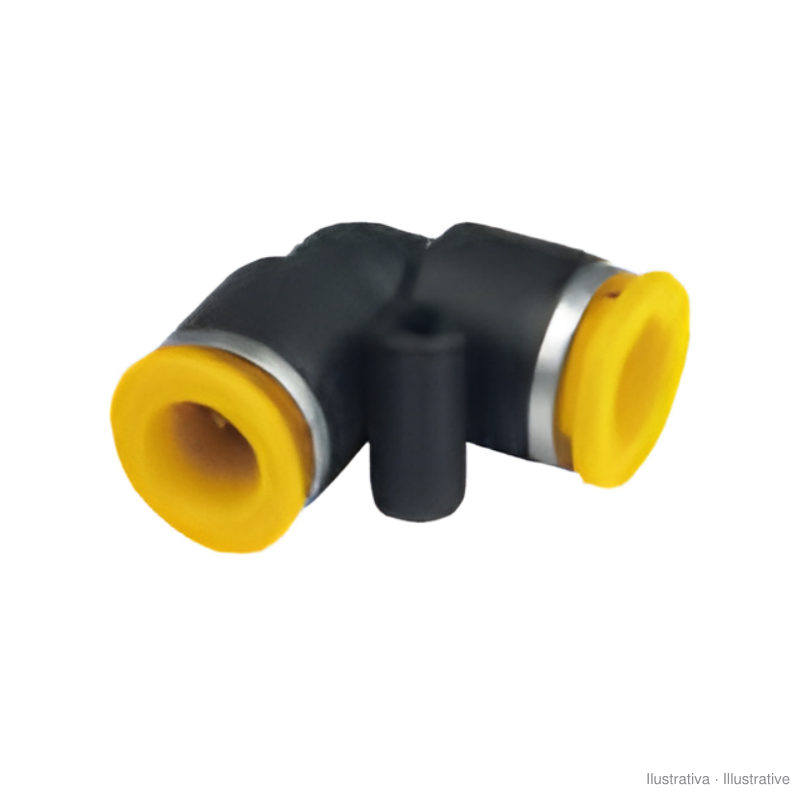

Push-in 90° tube-to-tube elbow

Union elbow for compressed air, with two push-in ports at 90°. It joins two tubes of the same diameter at a right angle with no threads, and avoids kinking the tube on tight bends, next to machines or inside panels.

Available for Ø4, Ø6, Ø8, Ø10 and Ø12 mm tube. The size is the outside diameter of the tube.

Cut the tube square and push it in until it reaches the stop; pull it lightly to check it is held.
