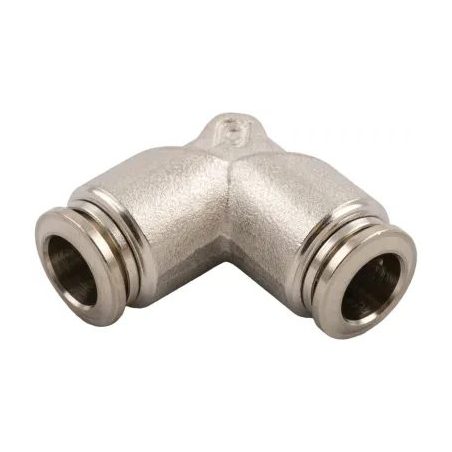

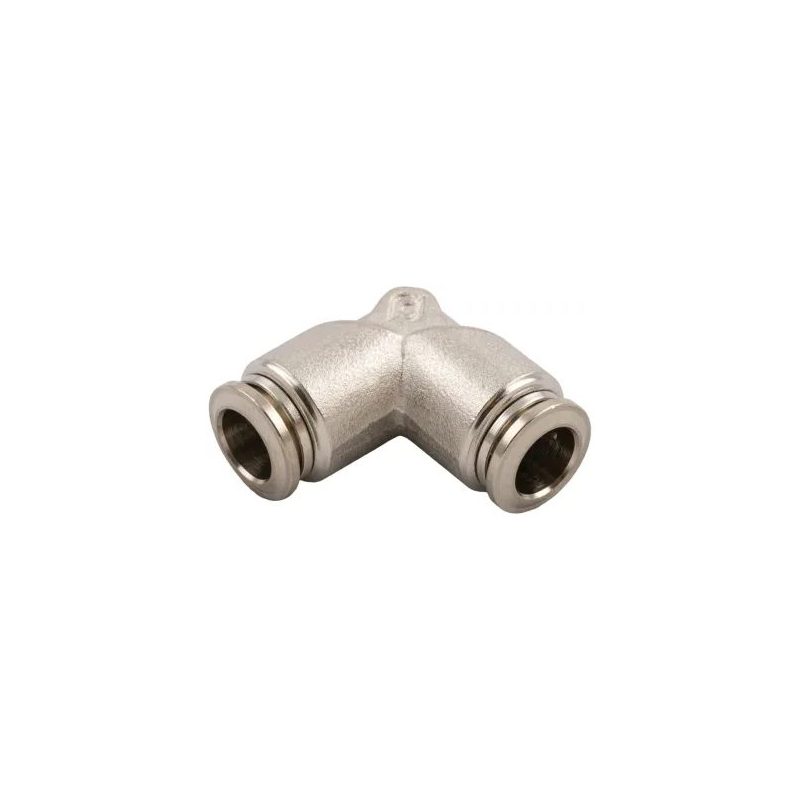

Push-in union elbow with metal ring, Ø8 mm tube (Aignep 57130)
search
  • Push-in union elbow with metal ring, Ø8 mm tube (Aignep 57130)

Push-in union elbow with metal ring, Ø8 mm tube (Aignep 57130)

€1.72
Tax included Delivery in 1 to 5 working days.

(1.4 € No tax)

90° tube-to-tube push-in elbow for Ø8 mm tube, nickel-plated brass, Aignep 57000 series. End-of-stock item.

Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 57130 8

€1.40 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Union elbow from the Aignep 57000 series (code 57130 8). It joins two Ø8 mm tubes at a right angle with no threads: both ports are push-in. It is used to make a tight bend without kinking the tube, on compressed air or vacuum lines.

  • Nickel-plated brass body and release ring, AISI 301 stainless steel collet, NBR seals
  • Pressure -0.99 to 20 bar
  • Temperature -20 to 80 °C
  • Polyamide PA6, PA11 or PA12, polyethylene or polyurethane tube (preferably 98 Shore A)

Cut the tube square and push it fully home; to release it, press the metal ring and pull.

Source: Aignep technical catalogue, Catálogo Tarifa 2016.
