Metal push-in bulkhead union, Aircomp Line 301

Name: Metal push-in bulkhead union, Aircomp Line 301
Availability: InStock

€3.99

Tax included Delivery in 1 to 5 working days.

(3.25 € No tax)

Straight push-in union with a threaded metal body and nut, for passing through a panel or plate. For Ø4 to Ø12 mm tube. End-of-stock item.

Tube: Ø10 mm

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 3011910

€3.25 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

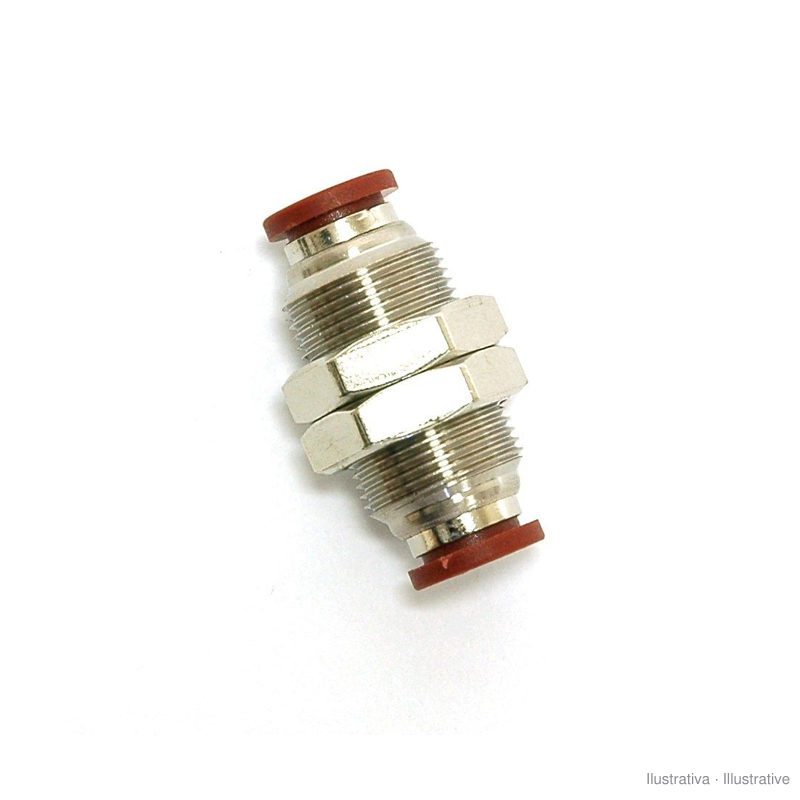

Metal bulkhead union from the Aircomp Line 301 range (301.19 series). It is a straight tube-to-tube union with a threaded body that is clamped to a panel, cabinet or plate with a nut; the tube connects on each side by push-in.

Body thread for the panel hole, according to the catalogue:

Ø4 mm: M12x1.0
Ø6 mm: M14x1.0
Ø8 mm: M16x1.0
Ø10 mm: M20x1.0
Ø12 mm: M22x1.0

Line 301 is for compressed air and vacuum, up to 16 bar, with nylon or polyurethane tube. Before drilling, check the panel thickness and the thread of the size you choose.

Source: Aircomp Raccordi 2011 technical catalogue.

Reference 3011910
