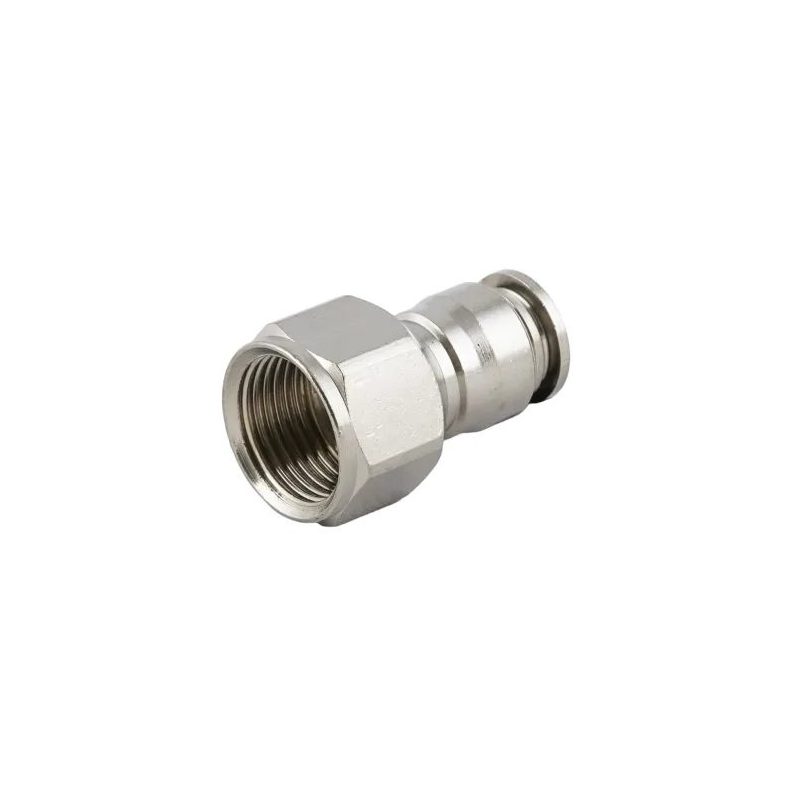

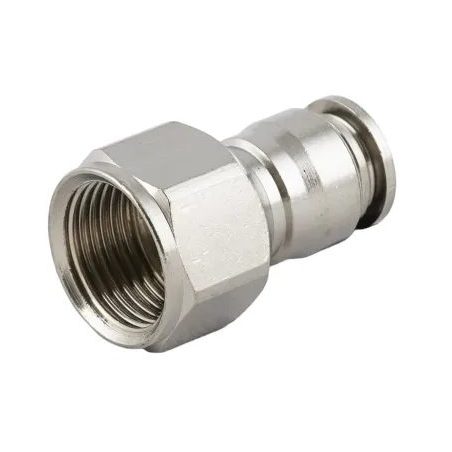

Pack of 19 - Straight female push-in fitting G 1/4" for Ø8 mm tube, metal with FKM seals (Aignep 40030V)
€15.68
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(12.75 € Excluding VAT. VAT at the legal rate applies.)
Straight female push-in fitting G 1/4" for Ø8 mm tube, nickel-plated brass with FKM seals, Aignep 40000V series rated to 30 bar. Pack of 19, end of stock.
Straight fitting from the Aignep 40000V series (code 40030V 8-1/4), the metal-ring range for higher pressures. It has a G 1/4" female thread on one side and a push-in socket for Ø8 mm tube on the other, and fits, for example, onto a nipple or a component with a male port.
- Nickel-plated brass body and release ring, double AISI 301 stainless steel collet, FKM seals
- Pressure -0.99 to 30 bar
- Temperature -15 to 130 °C continuous (up to 185 °C for short periods)
- ISO 228 parallel BSP thread
The FKM seals withstand higher temperatures than the NBR seals of the standard ranges. Sold in a fixed pack of 19.
Source: Aignep technical catalogue, Catálogo Tarifa 2016.
40030V 8-1/4-L19
